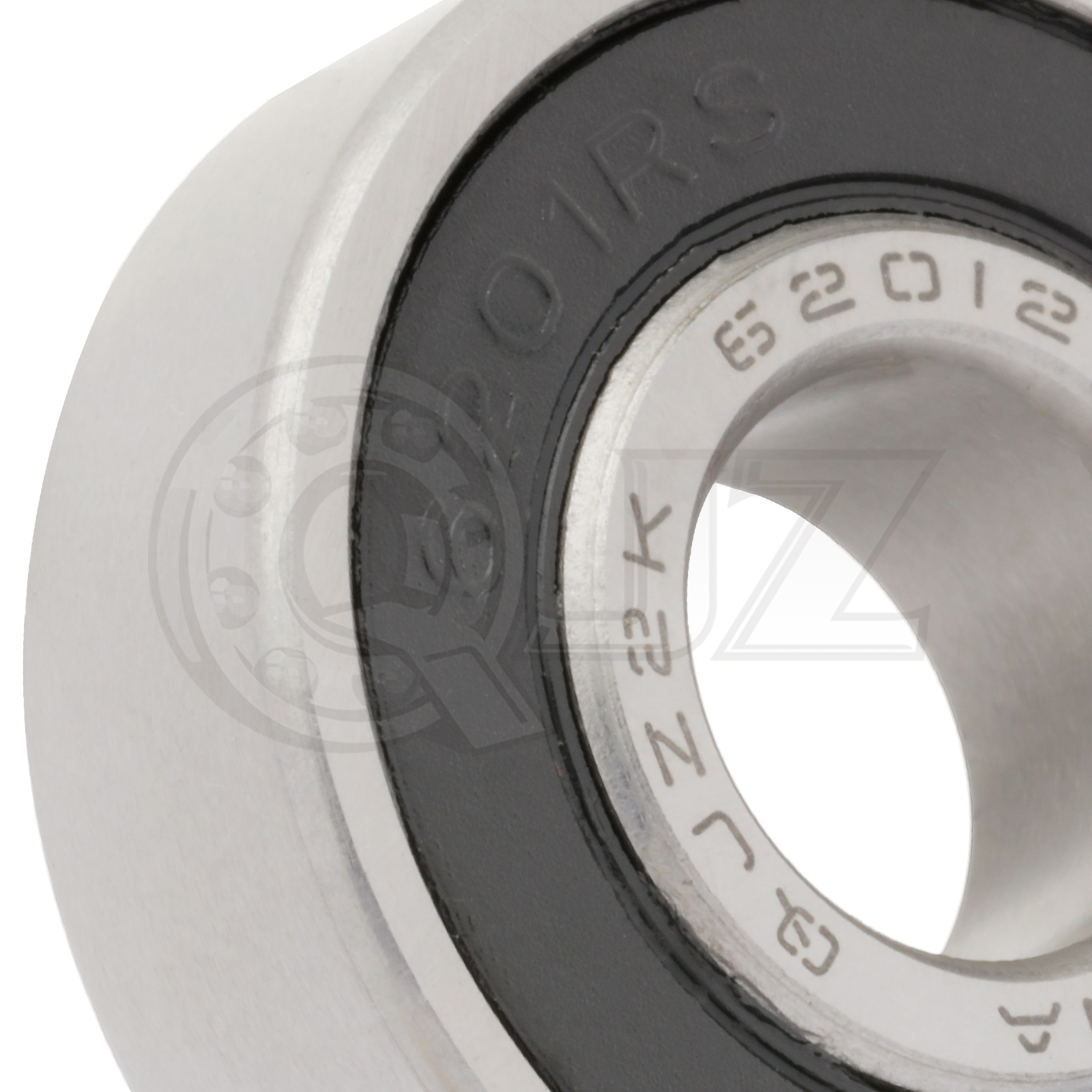

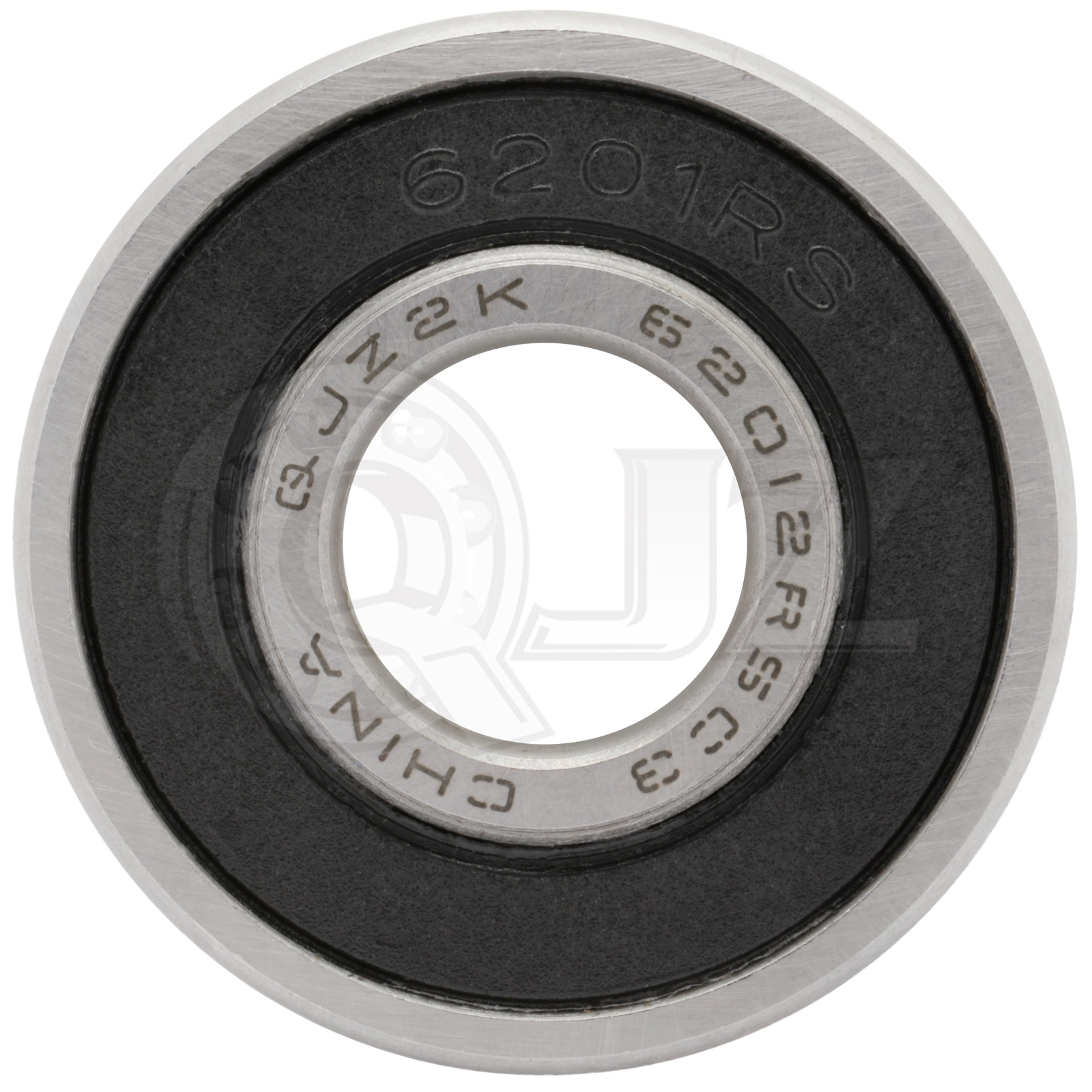

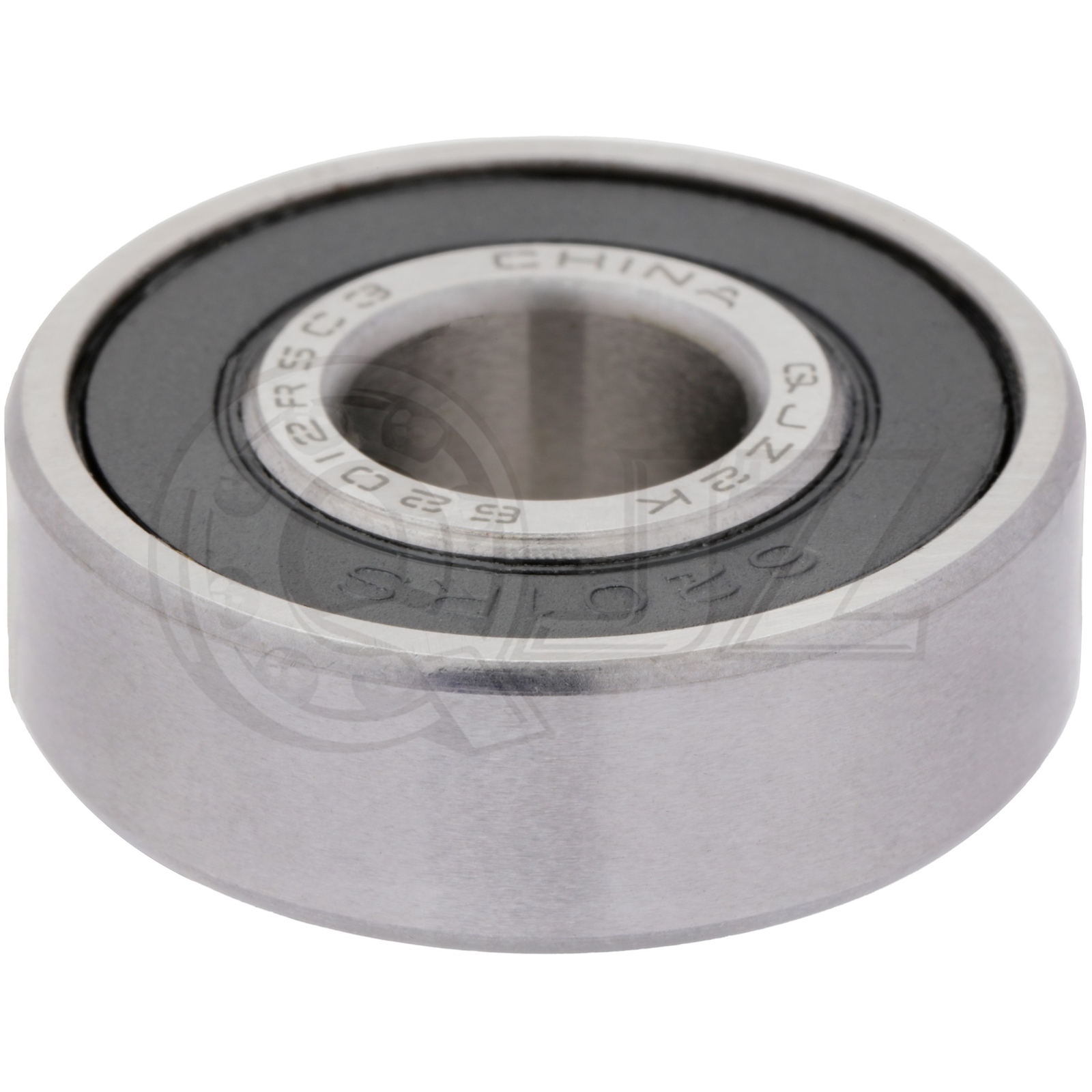

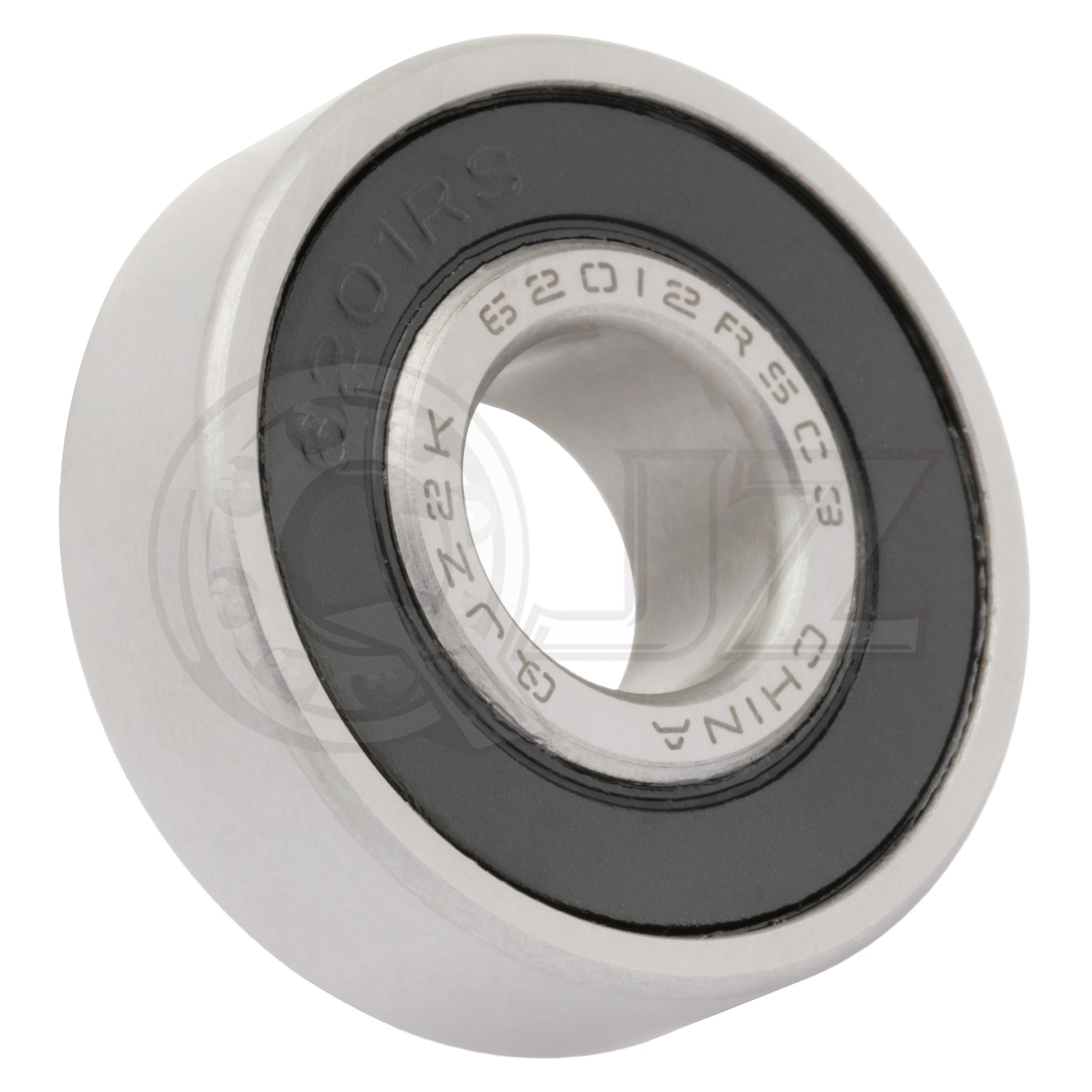

[Qty.4] SS6201-2RS Stainless Radial Ball Bearing [12mm Bore x 32mm OD x 10mm W]
USD 61.01 USD

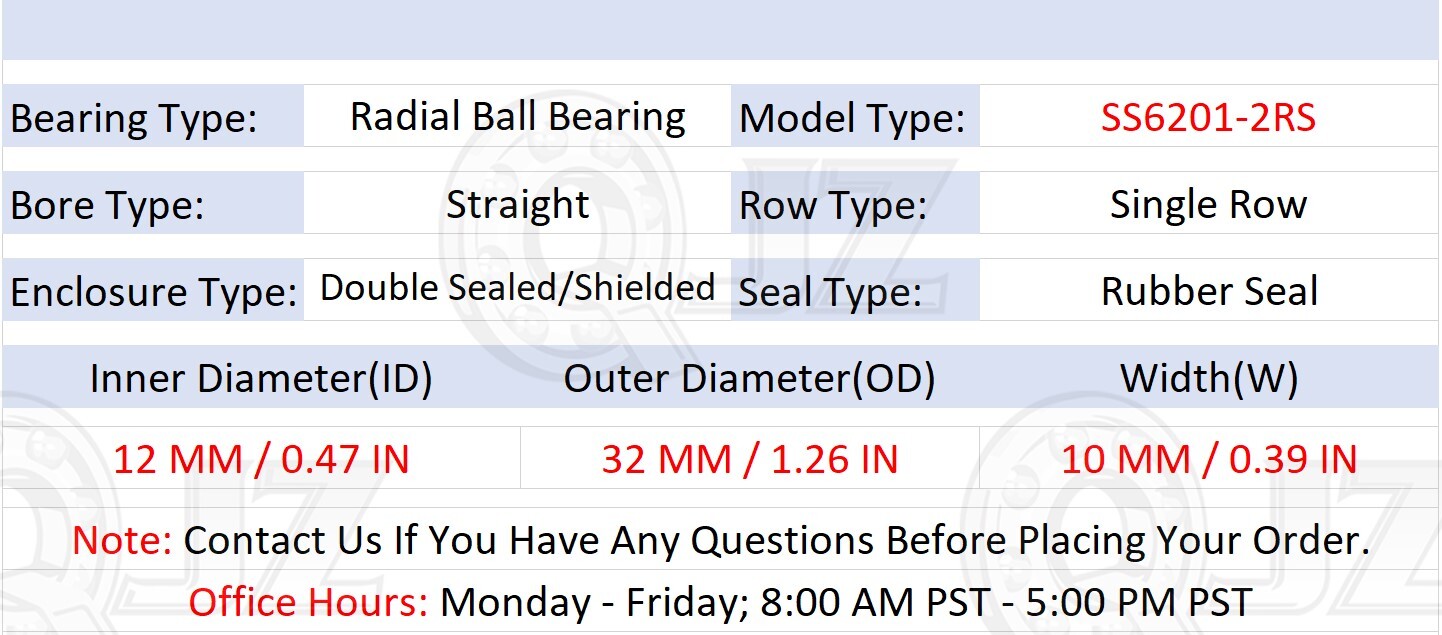

Specifications
| Brand | QJZ |
| Bore Diameter | 12 mm |
| Outside Diameter | 32 mm |
| Width | 10 mm |
| Dynamic Load Capacity | 6810 |
| Operating Temperature Range | 120° to 248° |
| Closure Type | Two Contact Seals |
| Fillet Radius | 0.0236 in |
| Static Load Capacity | 3047 lbs |
| Maximum RPM | 26000 RPM |
| Lubrications | Chevron SRI-2 Grease |
| Dynamic Load Rating (Cr) | 6800 N |
| Static Load Rating (Cor) | 3050 N |
| Max. Shaft Shoulder Dia. Inner (Ui) | 18.5 MM |
| Bore | Straight |
| Precision Class | ISO Normal/ABEC1 |
| Radius (min) (rs) | 0.6 MM |
| Ball Qty | 7-Counts |
| Ball Dia (Dw) | 5.953 MM |
| 5.953 MM | 27.95 MM |
| UPC | 00748139171696 |
What stands out about this set is the QJZ brand, and the text is not blurry or faint.
Related Items
[Qty.50] New 1630-2RS Deep Groove Radial Bearing [0.75″ ID x 1.625″ OD x 0.5″ W]
SET14 – Cone: L44643 Cup: L44610 – Tapered Roller Bearing 1″ X 1.98″ X 0.56″ (ID
SKF 6300 2ZJEM Radial/Deep Groove Ball Bearing – 10 mm ID, 35 mm OD, 11 mm W
RHP 7003CTSULP4V Angular Bearing 17x35x10mm 7003C 7003-C-T-DUL-P4V England
NSK 6200VV CE 10mm x 30mm x 9mm Sealed Bearing
10PACK SKF 6203-2Z Double Metal Seal Ball Bearings 17x40x12mm 6203ZZ 6203-ZZ

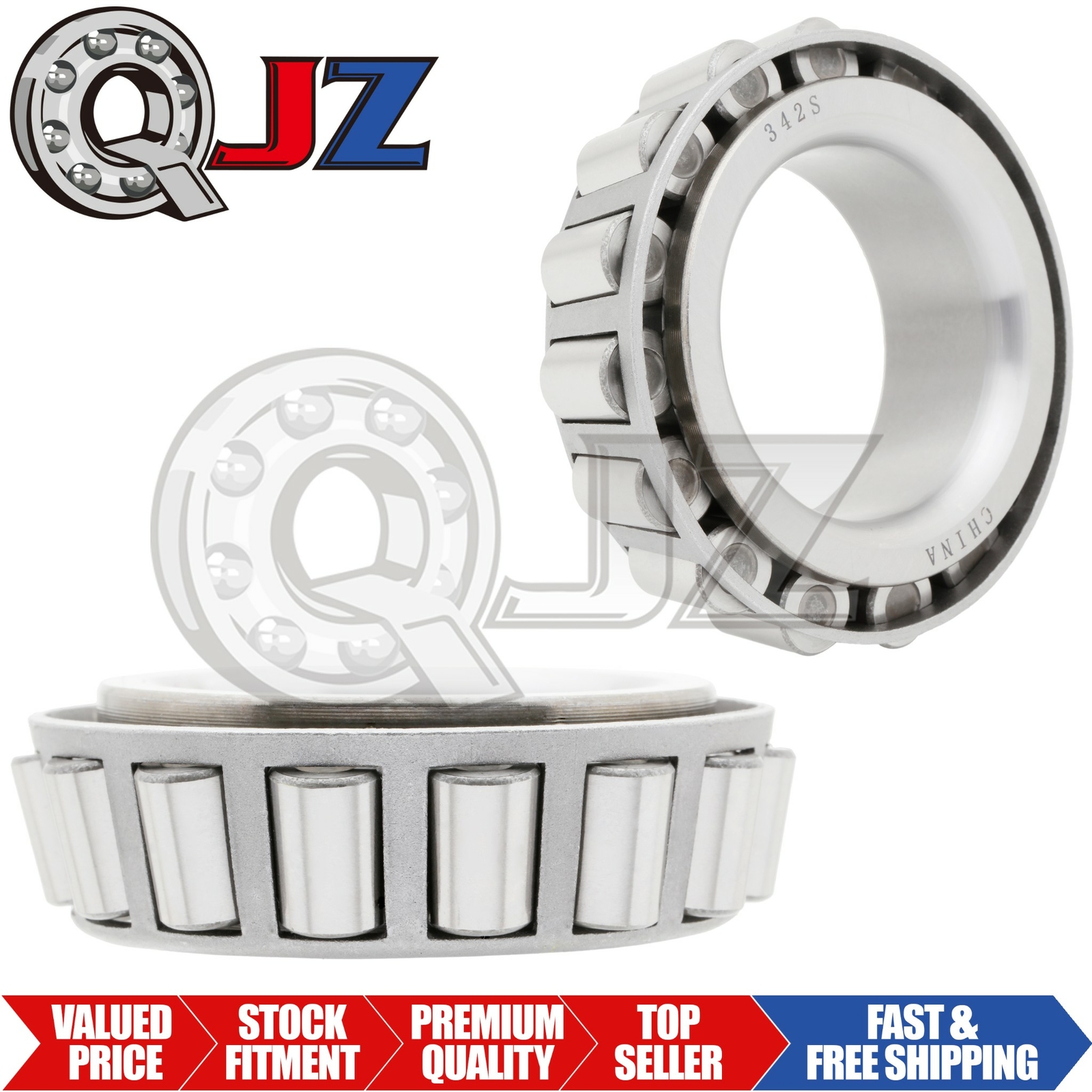

[2-Pack] 342S Tapered Roller Bearing Inner Cone 1.688″ (Bore) x 0.882″ (Width)
