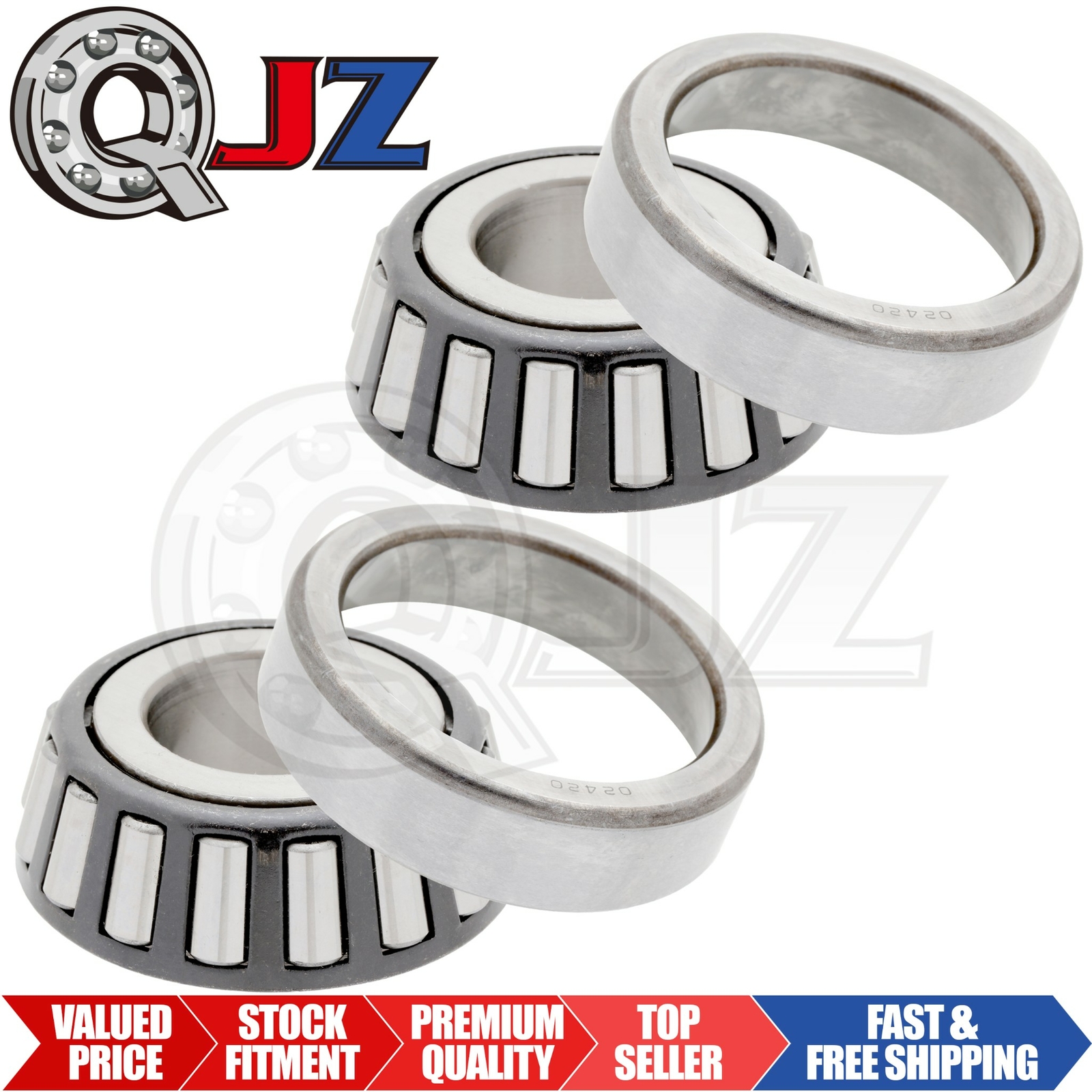

[Qty.2] 02474-02420 Tapered Roller Bearing Set [1.125″ID x 2.6875″OD x 0.875″W]

USD 58.28 USD

SKU: 4VvLjuja

Brand: QJZ

MPN: 02474-02420

GTIN: 00722815223954

Condition: New

Tags: -40 to 250 ºF 0.0300 in 0.06 IN 0.76 MM / 0.03 IN. 00722815223954 02420 02474 02474-02420 03.8 MM / 0.03 IN. 1.5 MM / 0.03 IN. 1.52 MM / 0.03 IN. 12800 lbf 15100 lbf 17.463 mm 17.463 mm / 0.6875 in 22.225 MM / 0.875 IN. 25000 lbf / 111000 N 28.575 MM / 1.125 IN. 36.07 MM / 1.42 IN. 36.58 MM / 1.44 IN. 58.93 MM / 2.32 in. 63 MM / 2.52 in. 68.263 mm / 2.6875 in Case Carburized Steel No Flange No Hole QJZ Single Cup Stamped Steel

Categories: Bearings & Bushings

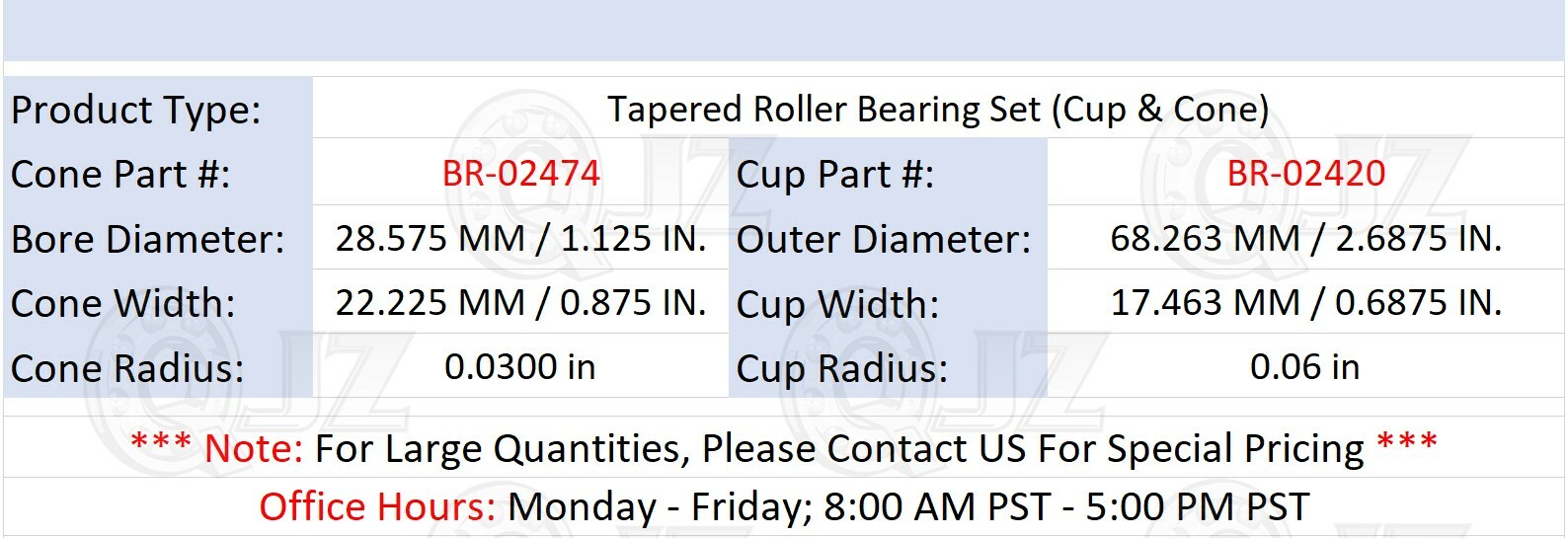

Specifications

Brand	QJZ
MPN	02474-02420
Cage Type	Stamped Steel
Dynamic Radial Rating	25000 lbf / 111000 N
Operating Temperature Range	-40 to 250 ºF
Dynamic Load Capacity	12800 lbf
Static Load Capacity	15100 lbf

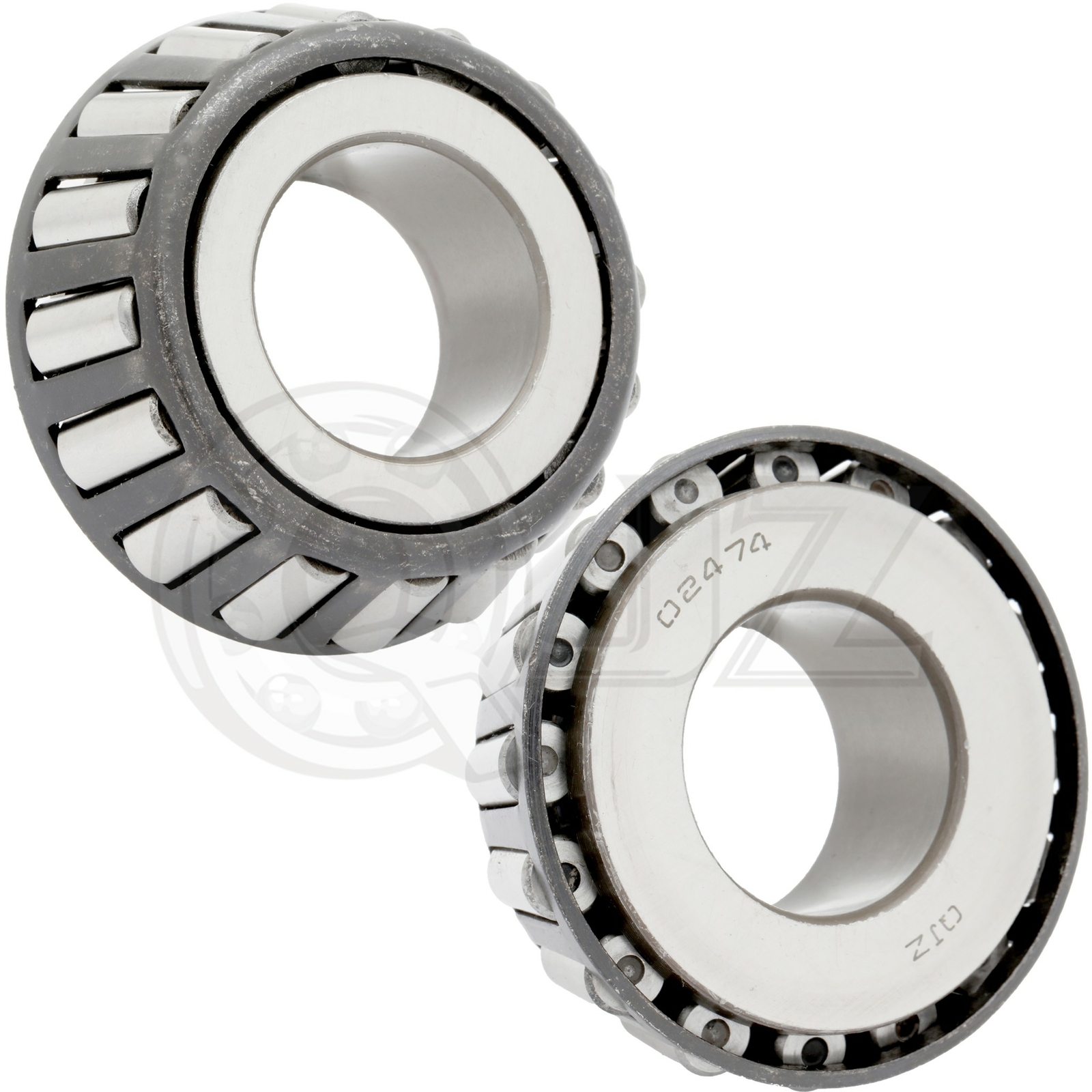

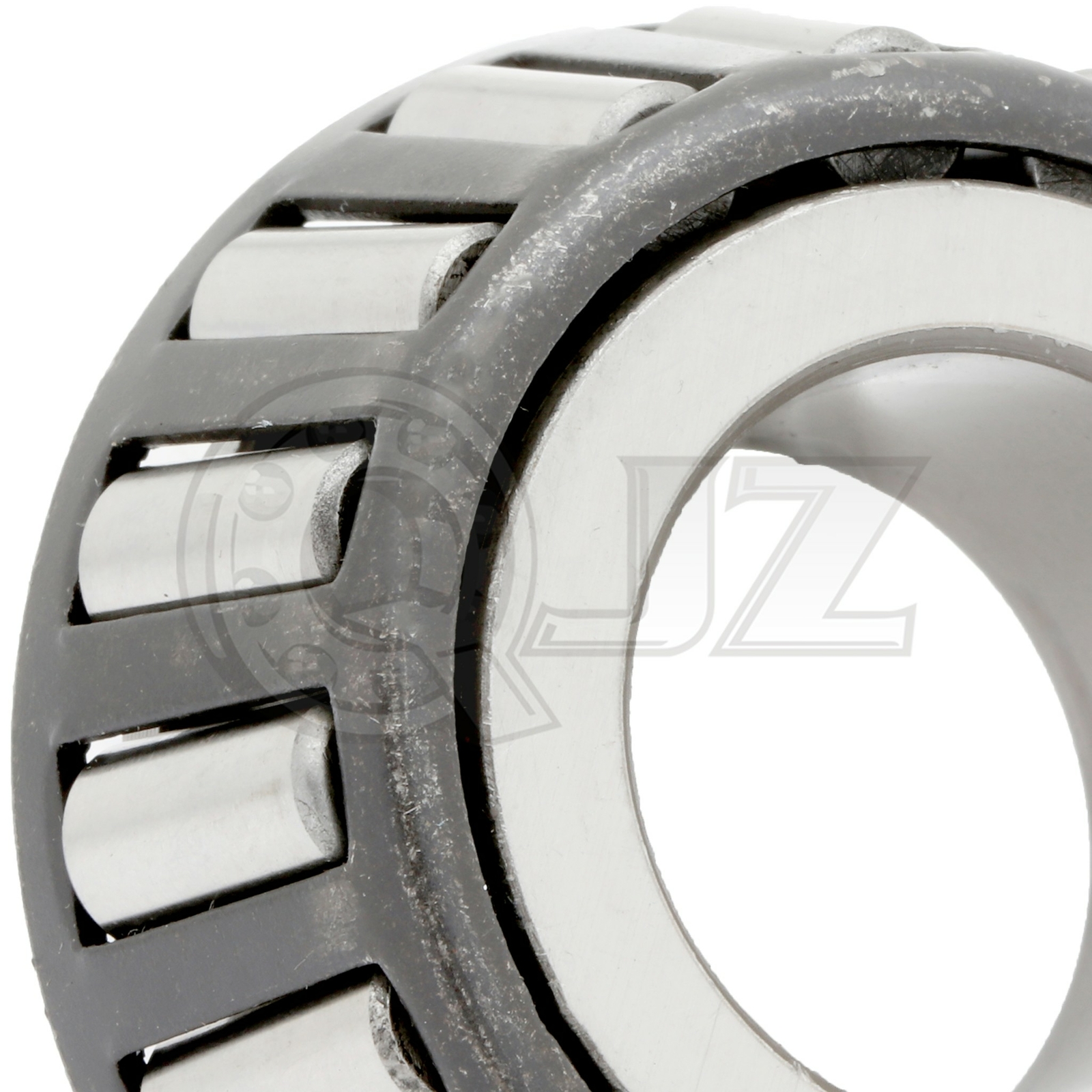

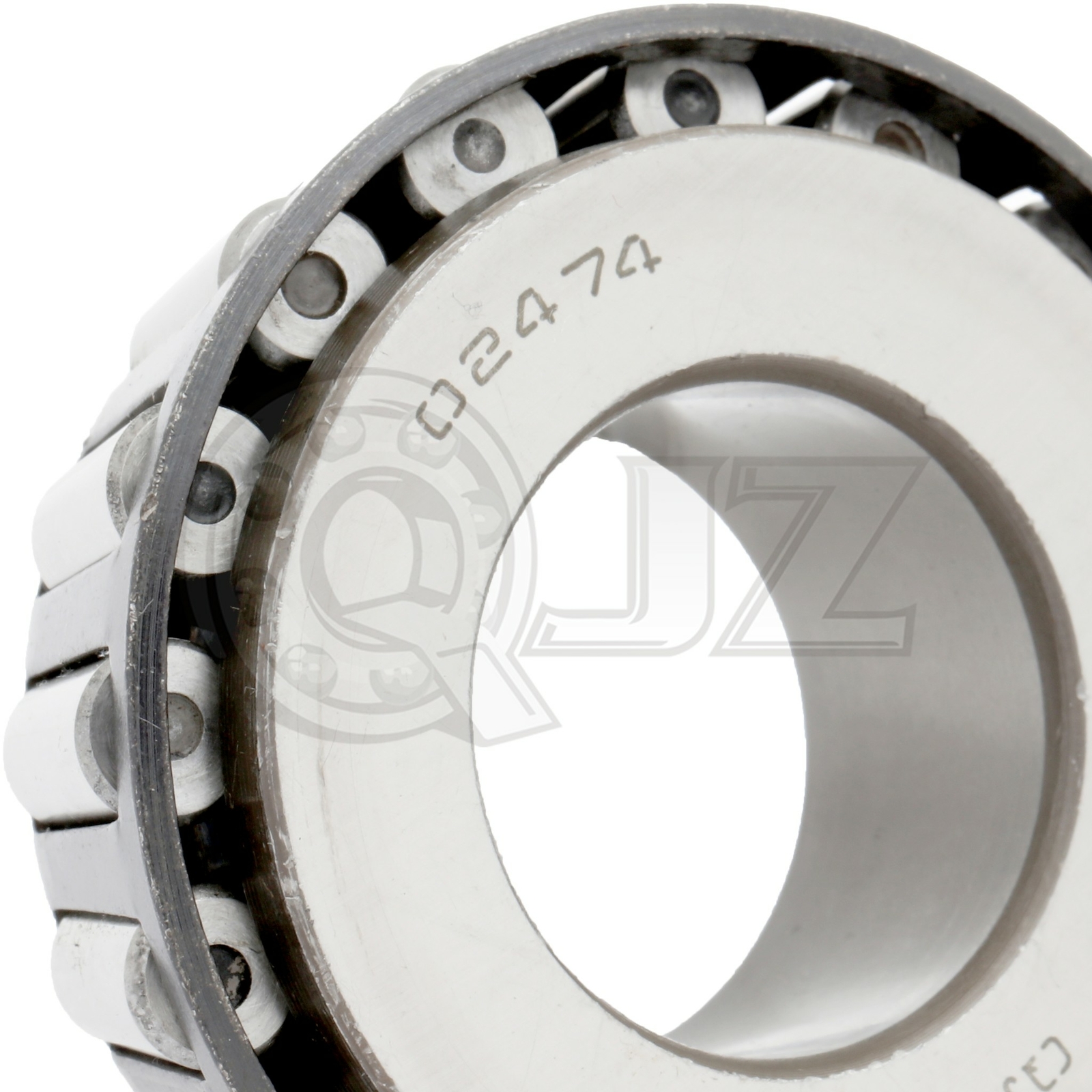

Cone Part Number	02474
Cone Bore Diameter(MM/IN)	28.575 MM / 1.125 IN.
Cone Width(MM/IN)	22.225 MM / 0.875 IN.
Cone Radius	0.0300 IN.
Cone Back-face "To Clear" Radius(MM/IN)	0.76 MM / 0.03 IN.
Cone Front-face Backing Diameter(MM/IN)	36.07 MM / 1.42 IN.
Cone Back-face Backing Diameter(MM/IN)	36.58 MM / 1.44 IN.

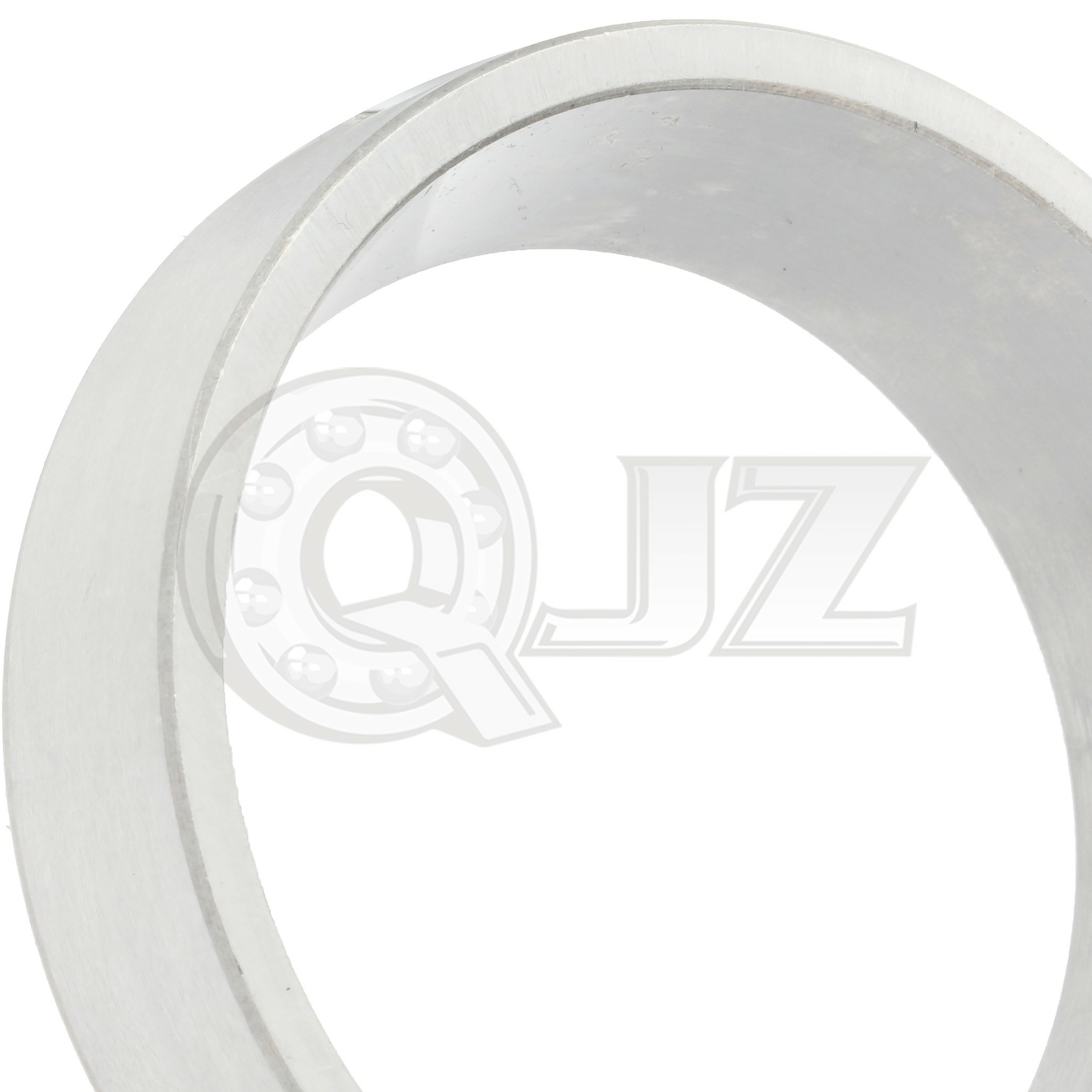

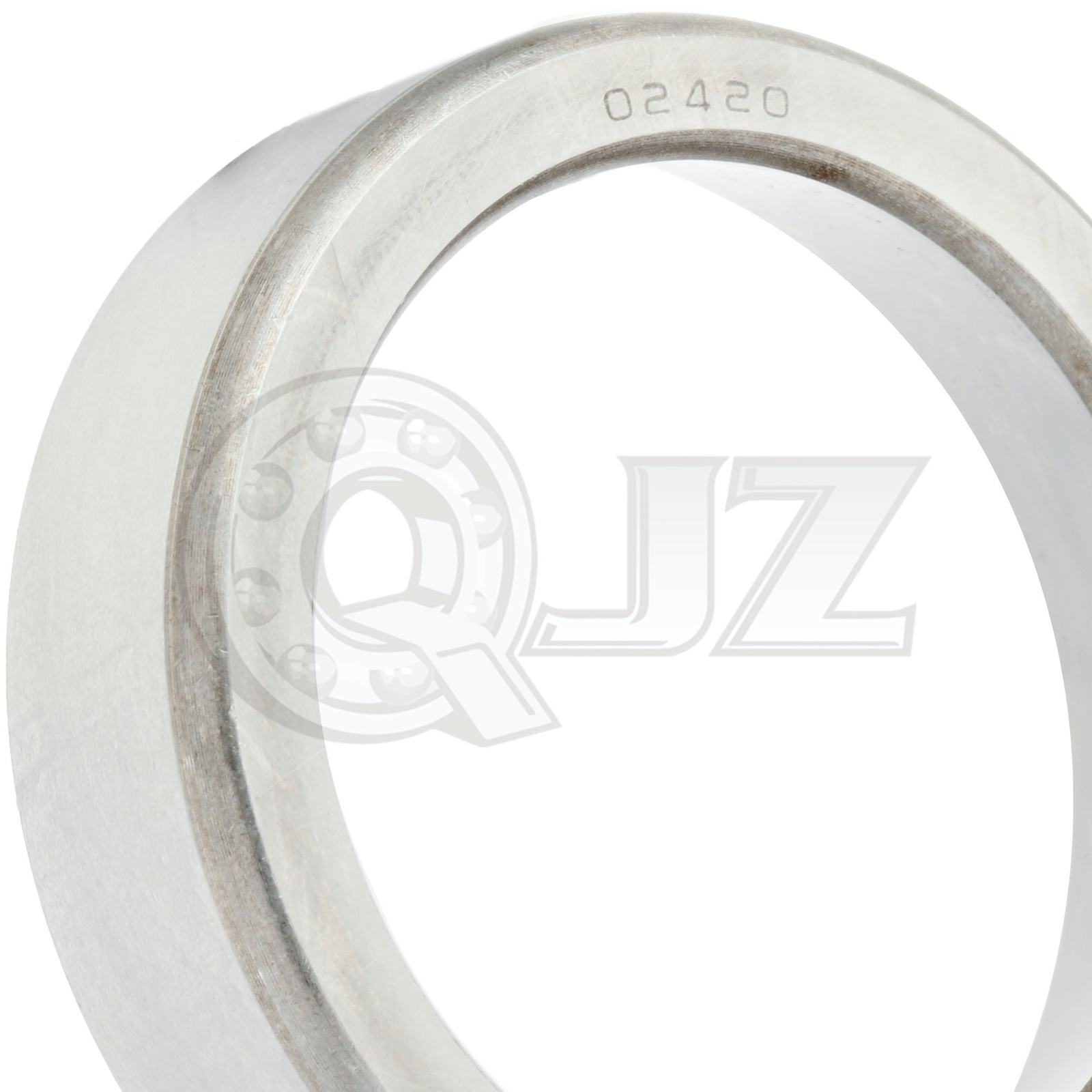

Cup Part Number	02420
Cup Outer Diameter(MM/IN)	68.263 MM / 2.6875 IN.
Cup Width(MM/IN)	17.463 MM / 0.6875 IN.
Cup Radius	0.06 IN.
Cup Backface "To Clear" Radius(MM/IN)	1.52 MM / 0.03 IN.
Cup Frontface Backing Diameter(MM/IN)	63 MM / 2.52 IN.
Cup Backface Backing Diameter(MM/IN)	58.93 MM / 2.32 IN.
Cage-Cone Frontface Clearance(MM/IN)	1.5 MM / 0.03 IN.
Cage-Cone Backface Clearance	03.8 MM / 0.03 IN.
Single Or Double Cup	Single Cup
Cup Flange:	No Flange
Lubrication Hole Type	No Hole
Material	Case Carburized Steel
UPC	00722815223954

You will find that the QJZ brand appears on both rings, and it looks very consistent.
