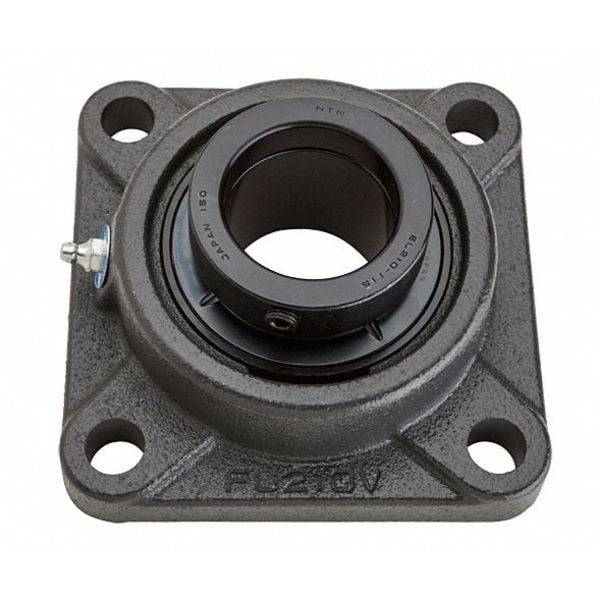

Ntn Uelfu-1.7/16M Flange Bearing, 4-Bolt, Ball, 1-7/16″ Bore
USD 131.99 USD
Specifications
| Brand | NTN |
| Width | 2.500 |
| Bore Diameter | 1-7/16" |
| MPN | UELFU-1.7/16M |
| Model | UELFU-1.7/16M |
| Style | 4-Bolt Flange Bearing |
| Item | 4-Bolt Flange Bearing |
| Overall Length | 4-21/32" |
| Type | 4-Bolt Flange Bearing |
| Overall Height | 2-3/32" |
| Overall Width | 4-12/32" |
| Weight | 3.8900 |
| Bearing Type | Ball |
| Height | 2-3/32" |
| Length | 5.400 |
| Depth | 2.500 |
| Series | Standard Duty |
| Housing Material | Cast Iron |
| Dimension A | 1-13/32" |
| Dimension D | 1-1/16" |
| Dimension J | 3-5/8" |
| Dimension L | 4-21/32" |
| Bearing Material | Steel |
| Static Load Capacity (Lb.) | 3450 |
| Dimension N | 33/64" |
| Dynamic Load Capacity (Lb.) | 5750 |
| Bore Dia. | 1-7/16" |
| Dynamic Load Capacity | 5750 lb. |
| Static Load Capacity | 3450 lb. |
| UPC | 4547359234633 |
A nice touch is how neatly the NTN name is stamped on the outer ring.
