Ntn Uelfu-1.3/4M Flange Bearing, 4-Bolt, Ball, 1-3/4″ Bore
USD 130.00 USD
Specifications
| Bearings Type | Ball Bearing |
| Overall Height | 2-5/16" |
| Housing Material | Cast Iron |
| MPN | UELFU-1.3/4M |
| Dynamic Load Capacity | 7350 lb. |
| Bore Diameter | 1-3/4" |
| Depth | 2.900 |
| Item | 4-Bolt Flange Bearing |
| Overall Width | 5-13/32" |
| Static Load Capacity | 4600 lb. |
| Bore Dia. | 1-3/4" |
| Style | 4-Bolt Flange Bearing |
| Height | 2-5/16" |
| Width | 2.900 |
| Bearing Material | Steel |
| Bearing Type | Ball |
| Dynamic Load Capacity (Lb.) | 7350 |
| Bolt Size | 3/8" |
| Overall Length | 5-13/32" |
| Static Load Capacity (Lb.) | 4600 |
| Weight | 5.6500 |
| Brand | NTN |
| Series | Standard Duty |
| Type | 4-Bolt Flange Bearing |
| Bolt Hole Size | 1/2" |
| Length | 5.900 |
| Model | UELFU-1.3/4M |
| Bearing Insert Material | 52100 Chrome Steel |
| UPC | 4547359234596 |
You will find that the NTN name is aligned cleanly on the race.
Related Items
6001-2RS NEW 6001-2RS SKF Brand Rubber Seal Ball Bearing 6001 2RS 6001RS12x28x8
NTN 6203LLB Deep Groove Ball Bearing 17x40x12mm /

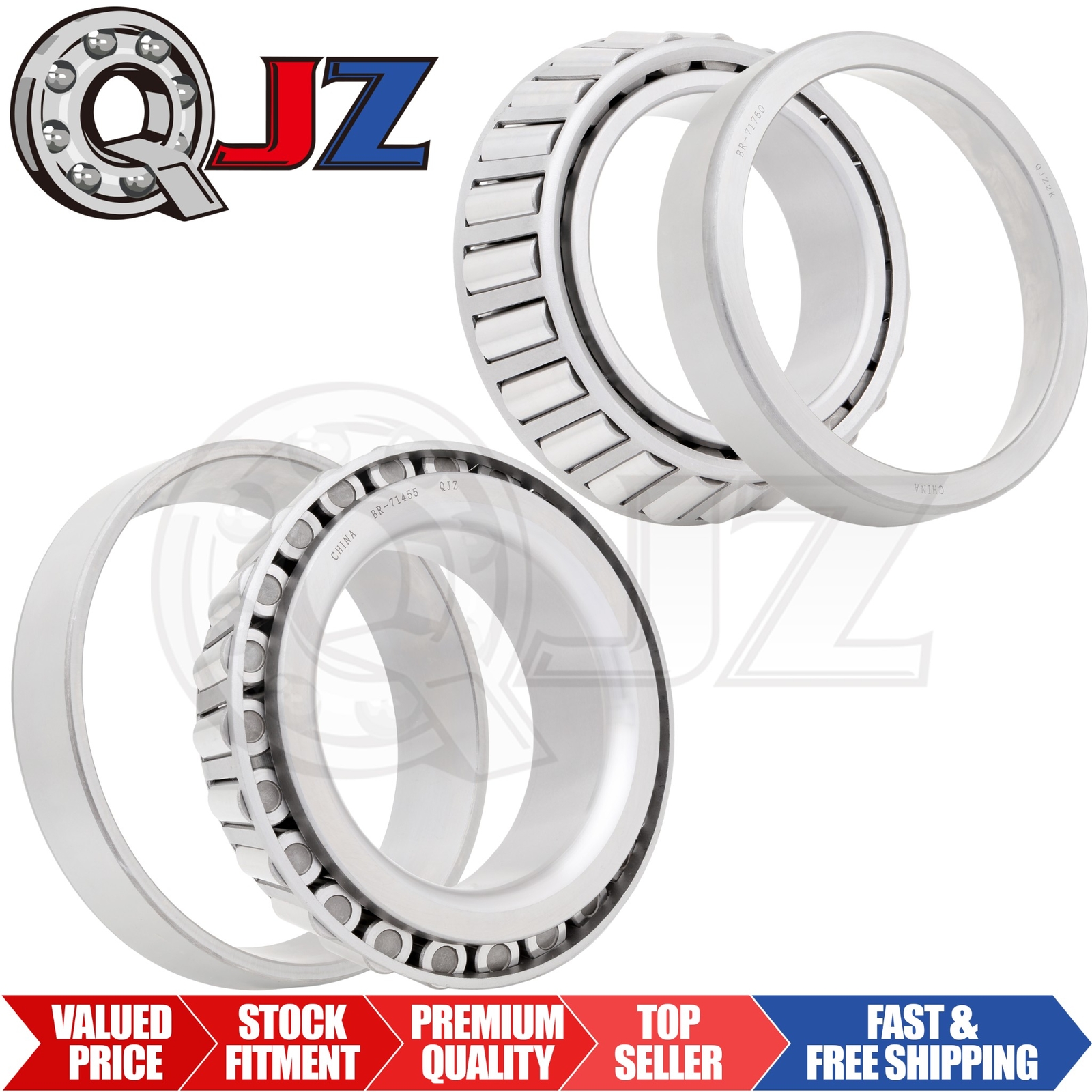

[Qty.2] 71455-71750 Tapered Roller Bearing Set Cup & Cone [4.531″ ID x 1.875″ W]
