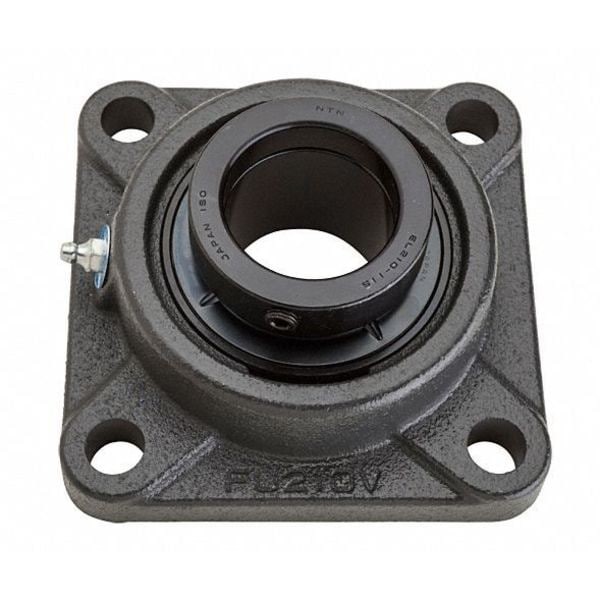

Ntn Uelfu-1.3/16M Flange Bearing, 4-Bolt, Ball, 1-3/16″ Bore
USD 106.99 USD
Specifications
| Brand | NTN |
| Material | Stainless Steel |
| Width | 2.300 |
| Bore Diameter | 1-3/16" |
| MPN | UELFU-1.3/16M |
| Model | UELFU-1.3/16M |
| Color | Black |
| Style | 4-Bolt Flange Bearing |
| Finish | Painted |
| Item | 4-Bolt Flange Bearing |
| Overall Length | 4-9/32" |
| Type | 4-Bolt Flange Bearing |
| Overall Height | 1-31/32" |
| Overall Width | 4-9/32" |
| Weight | 2.9000 |
| Bearing Type | Ball |
| Height | 1-31/32" |
| Length | 4.700 |
| Depth | 2.300 |
| Series | Standard Duty |
| Housing Material | Cast Iron |
| Dimension A | 15/16" |
| Dimension D | 1-3/16" |
| Dimension J | 3-1/4" |
| Dimension L | 4-9/32" |
| Bearing Material | Steel |
| Static Load Capacity (Lb.) | 2540 |
| Dimension N | 29/64" |
| Dynamic Load Capacity (Lb.) | 4400 |
| Bore Dia. | 1-3/16" |
| Dynamic Load Capacity | 4400 lb. |
| UPC | 4547359234589 |
What stands out about this product is the NTN reputation that many mechanics trust.
