Ntn Ucpl-3/4M Pillow Block Bearing, Cast Iron Housing Material, Set Screw,
USD 77.79 USD
Specifications
| Brand | NTN |
| Bore Diameter | 3/4" |
| Width | 1.900 |
| MPN | UCPL-3/4M |
| Model | UCPL-3/4M |
| Style | Pillow Block Bearing |
| Item | Pillow Block Bearing |
| Type | Pillow Block Bearing |
| Overall Height | 2-17/32" |
| Overall Width | 1-1/2" |
| Weight | 1.8100 |
| Bearing Type | Ball |
| Height | 2-17/32" |
| Length | 2.800 |
| Depth | 1.900 |
| Series | Standard Duty |
| Housing Material | Cast Iron |
| Dimension A | 1-1/2" |
| Dimension B | 1-7/32" |
| Dimension H | 1-1/4" |
| Dimension D | 3/4" |
| Dimension J | 3-25/32" |
| Bearing Material | Steel |
| Static Load Capacity (Lb.) | 1500 |
| Dimension N | 7/16" |
| Dynamic Load Capacity (Lb.) | 2890 |
| Bore Dia. | 3/4" |
| Dynamic Load Capacity | 2890 lb. |
| UPC | 4547359223354 |
This ball bearing carries the NTN badge, and that makes me feel more confident.
Related Items
Timken 36690-3/36620B-3 Bearing Cone&Cup 5-3/4″ID 7-5/8″OD 36690 36620-B Class 3
NTN 6005LLB Deep Groove Ball Bearing – Standard FNOB
NTN R10ZZ Miniature / Extra Small Ball Bearing 15.875×34.925×8.730mm.
[Qty.10] 6001-2RS Radial/Deep Groove Ball Bearing [12mm ID x 28mm OD x 8mm W]
New Timken 29675 Tapered Cone Bearing, 2.750″ OD X 1.000″ Width Lot of 2
5206-33 JAPAN Double Row Ball Bearing Size: 33mmX62mmX23.8mm

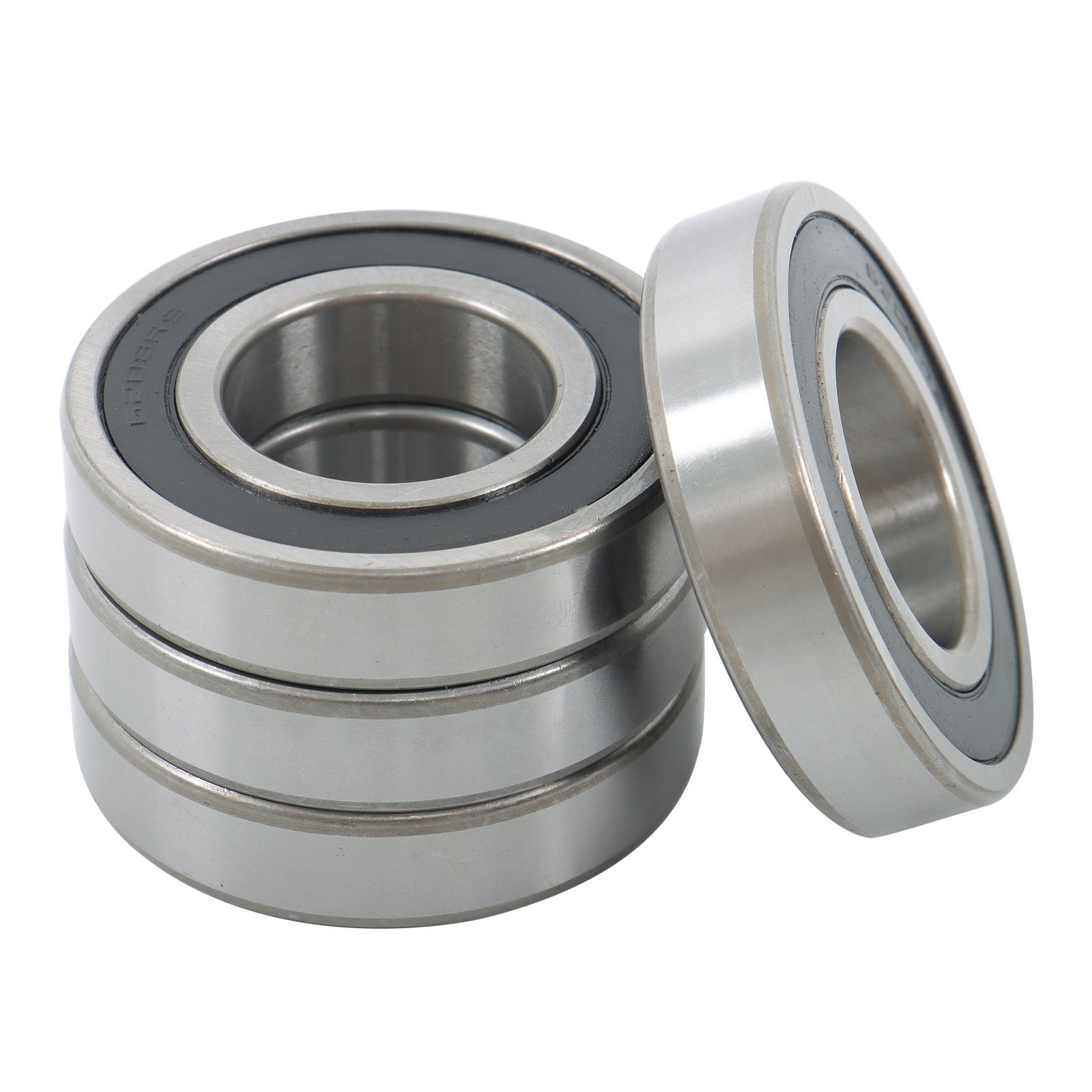

6208-2RS Deep Groove Bearings 4pcs 40mm x80mm x18mm Rubber Sealed
