Ntn Ucfux-2.7/16M Flange Bearing, 4-Bolt, Ball, 2-7/16″ Bore
USD 308.99 USD
Specifications
| Brand | NTN |
| Width | 9.000 |
| Bore Diameter | 2-7/16" |
| MPN | UCFUX-2.7/16M |
| Model | UCFUX-2.7/16M |
| Style | 4-Bolt Flange Bearing |
| Item | 4-Bolt Flange Bearing |
| Overall Length | 7-19/32" |
| Type | 4-Bolt Flange Bearing |
| Overall Height | 3-1/4" |
| Overall Width | 7-19/32" |
| Weight | 15.7600 |
| Bearing Type | Ball |
| Height | 3-1/4" |
| Length | 9.100 |
| Depth | 9.000 |
| Series | Medium Duty |
| Housing Material | Cast Iron |
| Dimension A | 2-7/16" |
| Dimension B | 2-15/16" |
| Dimension D | 2-7/16" |
| Dimension J | 5-7/8" |
| Dimension L | 7-19/32" |
| Bearing Material | Steel |
| Static Load Capacity (Lb.) | 8150 |
| Dimension N | 41/64" |
| Dynamic Load Capacity (Lb.) | 11800 |
| Bore Dia. | 2-7/16" |
| Dynamic Load Capacity | 11,800 lb. |
| Static Load Capacity | 8150 lb. |
| UPC | 4547359597998 |
You will find that the NTN name is aligned cleanly on the race.
Related Items
BCA 15245 Tapered Roller Bearing Steel 1.25in Bore x 2.44in OD x 0.73in W
One (1) MRC 209SZZ Deep Groove Bearing 45 MM ID USA NEW
[Qty.8] 5307-ZZ New Angular Contact Ball Bearing [35mm ID x 80mm OD x 34.9mm W]
One (1) Generic L44610 Tapered Roller Bearing Cup 1.98″OD Poland NEW

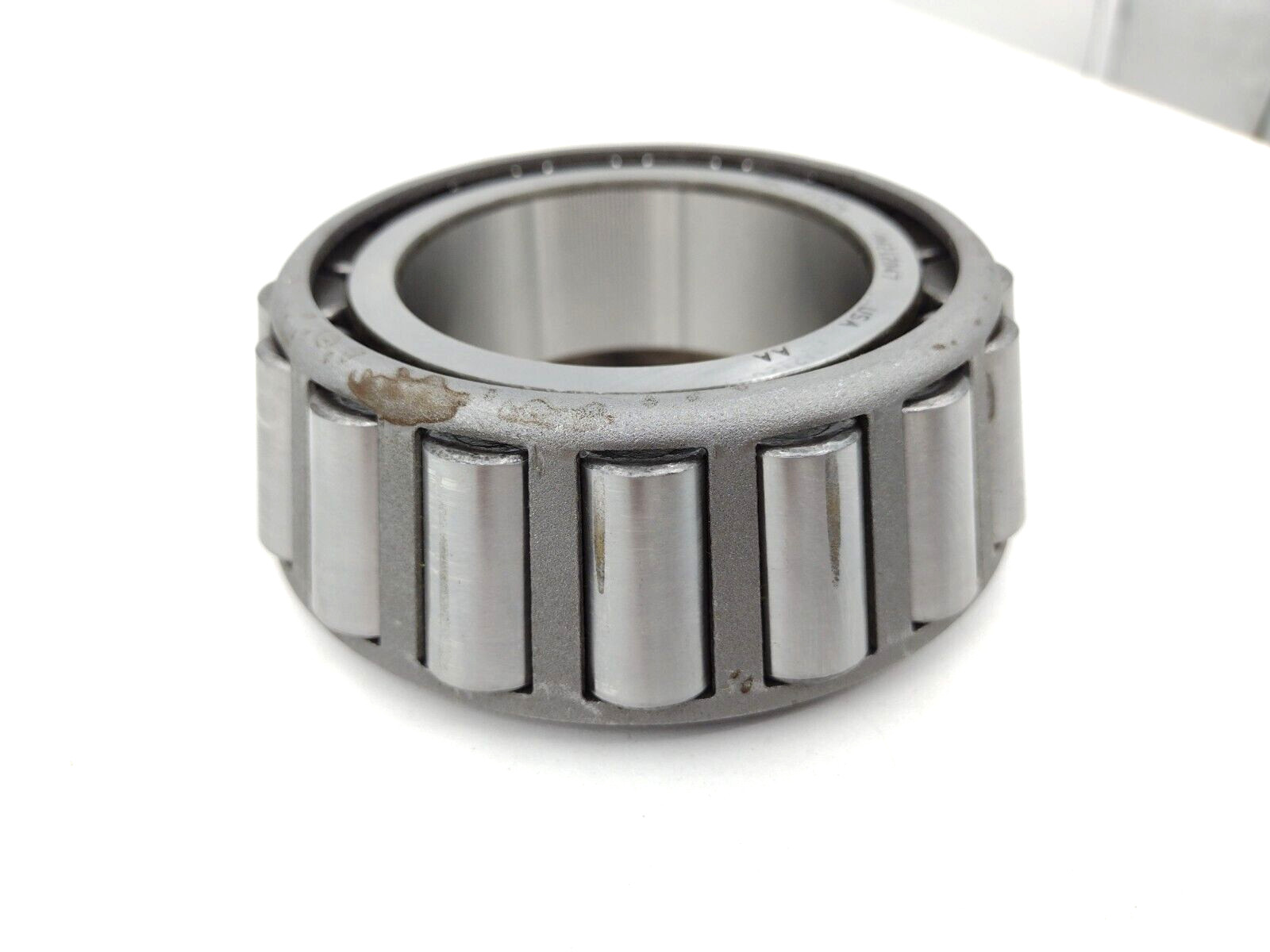

Bower Federal Mogul BCA HM 212047 Tapered Roller Bearing Cone
