Ntn Ucfu-2.3/16M Flange Bearing, 4-Bolt, Ball, 2-3/16″ Bore
USD 207.99 USD
Specifications
| Brand | NTN |
| Bore Diameter | 2-3/16" |
| Width | 2.700 |
| MPN | UCFU-2.3/16M |
| Model | UCFU-2.3/16M |
| Style | 4-Bolt Flange Bearing |
| Item | 4-Bolt Flange Bearing |
| Overall Length | 6-13/32" |
| Type | 4-Bolt Flange Bearing |
| Overall Height | 2-17/32" |
| Overall Width | 6-13/32" |
| Weight | 8.1500 |
| Bearing Type | Ball |
| Height | 2-17/32" |
| Length | 6.800 |
| Depth | 2.700 |
| Series | Standard Duty |
| Housing Material | Cast Iron |
| Dimension A | 1-15/16" |
| Dimension B | 2-3/16" |
| Dimension D | 2-3/16" |
| Dimension J | 5-1/8" |
| Dimension L | 6-13/32" |
| Bearing Material | Steel |
| Static Load Capacity (Lb.) | 6550 |
| Dimension N | 43/64" |
| Dynamic Load Capacity (Lb.) | 9750 |
| Bore Dia. | 2-3/16" |
| Dynamic Load Capacity | 9750 lb. |
| Static Load Capacity | 6550 lb. |
| UPC | 4547359217346 |
A nice touch is seeing NTN on both the box and the bearing itself.
Related Items
Timken (LM603049)

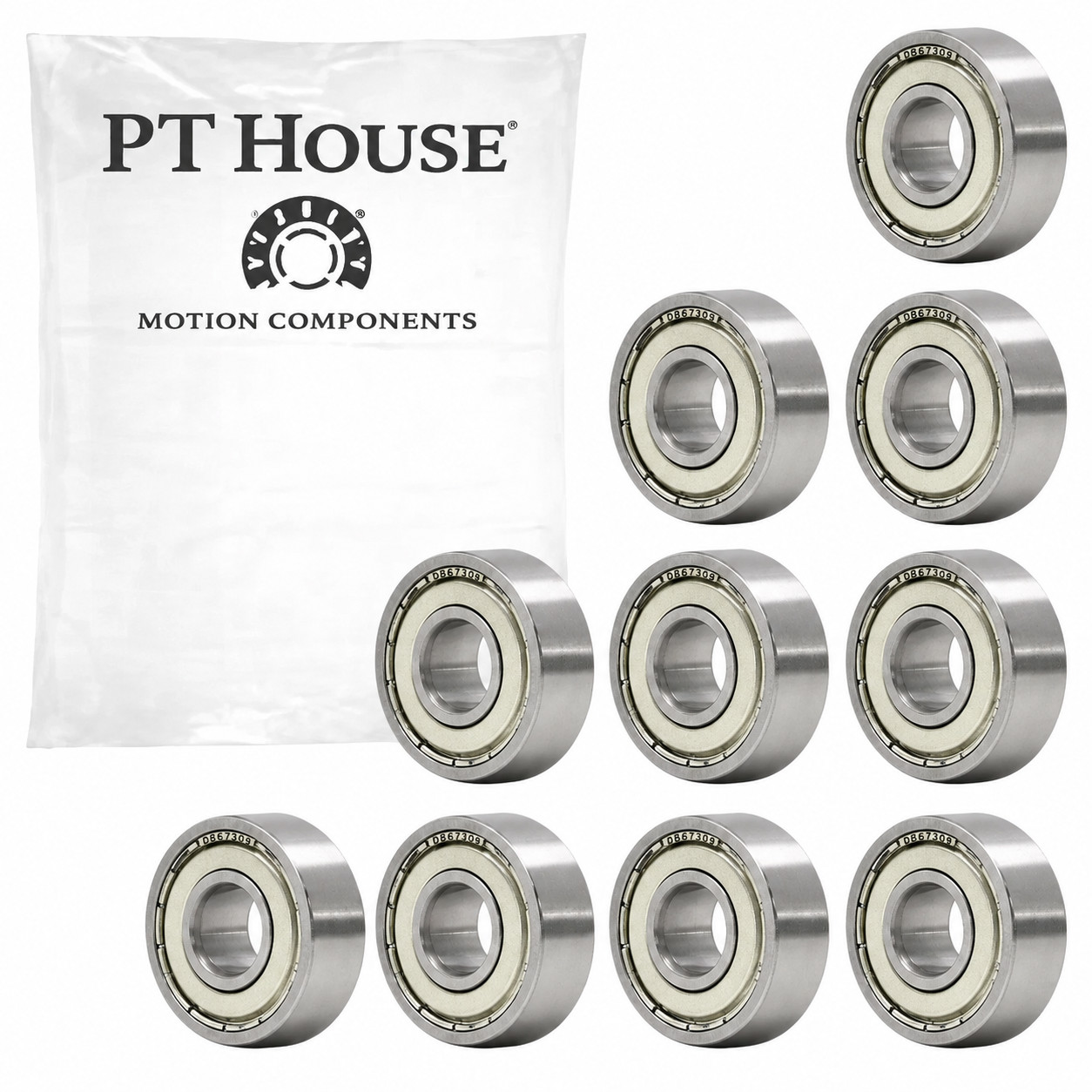

625-ZZ Ball Bearing 5x16x5mm 625 ZZ Metal Shielded (Qty 10)
NTN Japan SC06A68 Gearbox Bearing for Honda 91002-PS1-003 28x60x15 mm
Ntn Sc0228lluc3/L627 Radial Ball Bearing, Sealed, 15.875Mmbore

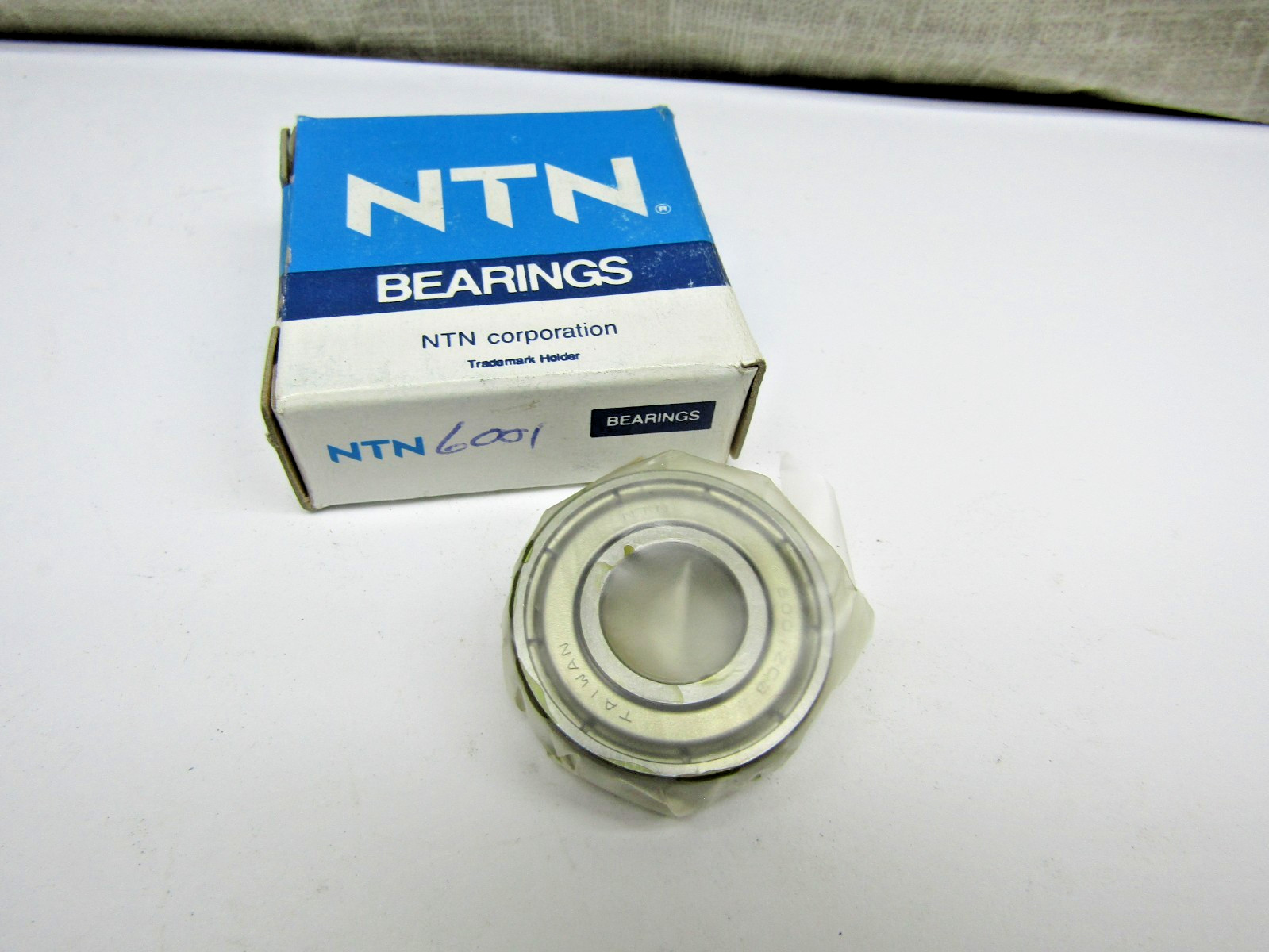

NTN 6001-ZZ 12mm X 28mm X 8mm Shielded Bearing
