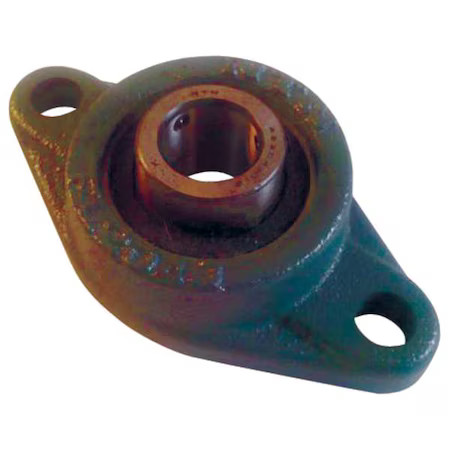

Ntn Ucfl205-014D1 2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball,
USD 58.39 USD
Specifications
| Brand | NTN |
| Bore Diameter | 7/8" |
| Width | 1.800 |
| MPN | UCFL205-014D1 |
| Model | UCFL205-014D1 |
| Style | 2-bolt Flange Bearing |
| Item | 2-bolt Flange Bearing |
| Overall Length | 5-1/8" |
| Type | 2-bolt Flange Bearing |
| Overall Height | 1-13/32" |
| Overall Width | 2-11/16" |
| Weight | 1.4000 |
| Bearing Type | Ball |
| Height | 1-13/32" |
| Length | 3.000 |
| Depth | 1.800 |
| Series | Standard Duty |
| Housing Material | Cast Iron |
| Dimension A | 1-1/16" |
| Dimension B | 1-11/32" |
| Dimension H | 5-1/8" |
| Dimension J | 3-57/64" |
| Dimension L | 2-11/16" |
| Bearing Material | Steel |
| Static Load Capacity (Lb.) | 1770 |
| Dimension N | 5/8" |
| Dynamic Load Capacity (Lb.) | 3150 |
| Bore Dia. | 7/8" |
| Dynamic Load Capacity | 3150 lb. |
| Static Load Capacity | 1770 lb. |
| UPC | 4547359501421 |
What stands out about this product is the NTN reputation that many mechanics trust.
