Ntn 63305Llbc3/L627 Cartridge Bearing, Double Seal, 25Mm Bore
USD 70.59 USD
Specifications
| Brand | NTN |
| Bore Diameter | 25mm |
| Width | 1.500 |
| MPN | 63305LLBC3/L627 |
| Model | 63305LLBC3/L627 |
| Style | Radial Ball Bearing |
| Item | Radial Ball Bearing |
| Type | Radial Ball Bearing |
| Temp. Range (F) | -13 to 250 |
| Weight | 0.7500 |
| Bearing Type | Double Sealed |
| Length | 2.600 |
| Depth | 1.500 |
| Max. RPM | 12,000 |
| Outside Dia. | 62mm |
| Seal Material | NBR |
| Outside Dia. Tolerance | +0/-0.013mm |
| Lubrication | Polyrex EM Grease |
| Bearing Material | Steel |
| Static Load Capacity (Lb.) | 2460 |
| Dynamic Load Capacity (Lb.) | 4750 |
| Bore Dia. | 25mm |
| Cage Material | Pressed Steel |
| Dynamic Load Capacity | 4,750 lb. |
| Static Load Capacity | 2,460 lb. |
| Bore Tolerance | +0/-0.01mm |
| UPC | 4547359582437 |
I noticed the NTN engineering on this bearing and it looks carefully made.
Related Items
NSK 3307 B 2RSR TNG Angular Contact Ball Bearing, Rubber Sealed 35x80x34.9 mm

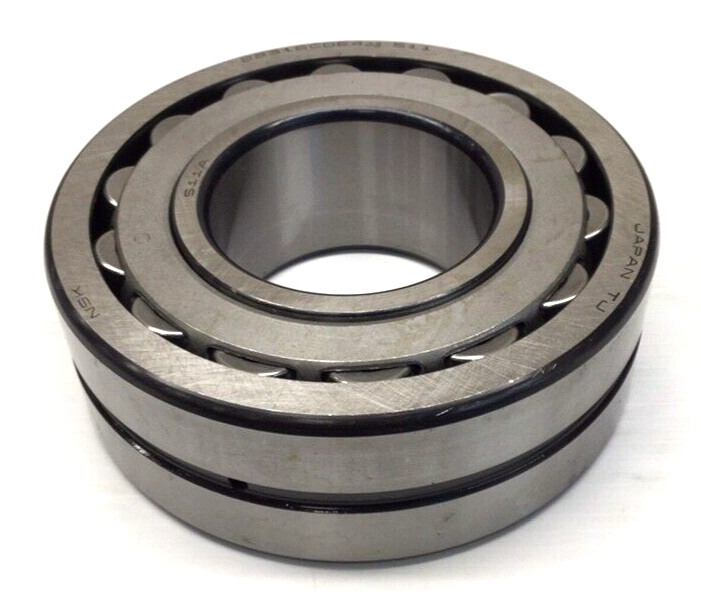

NSK 22316CDE4C3 Spherical Roller Bearing 80mm ID 170mm OD 58mm W Straight Bore
