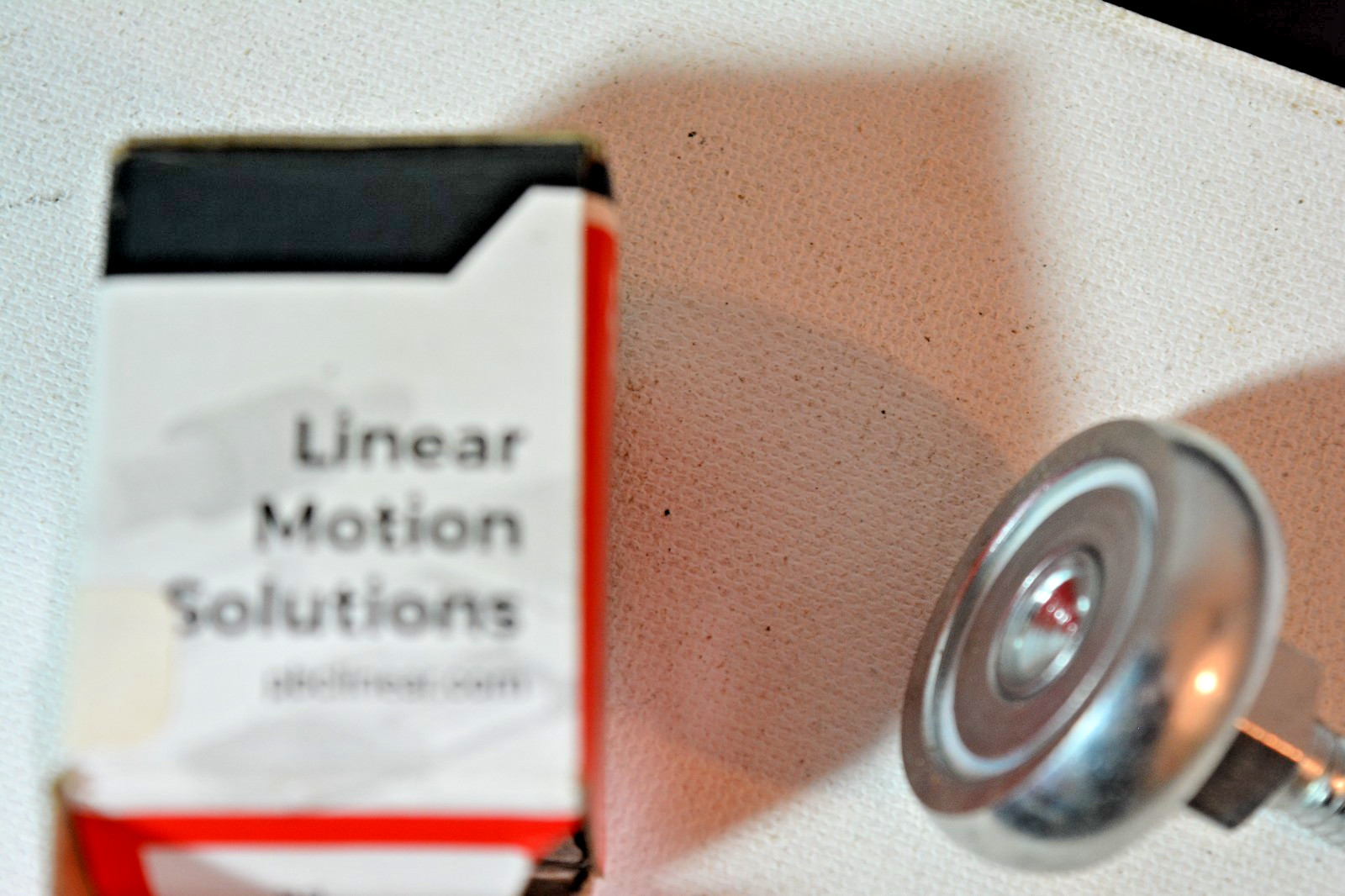

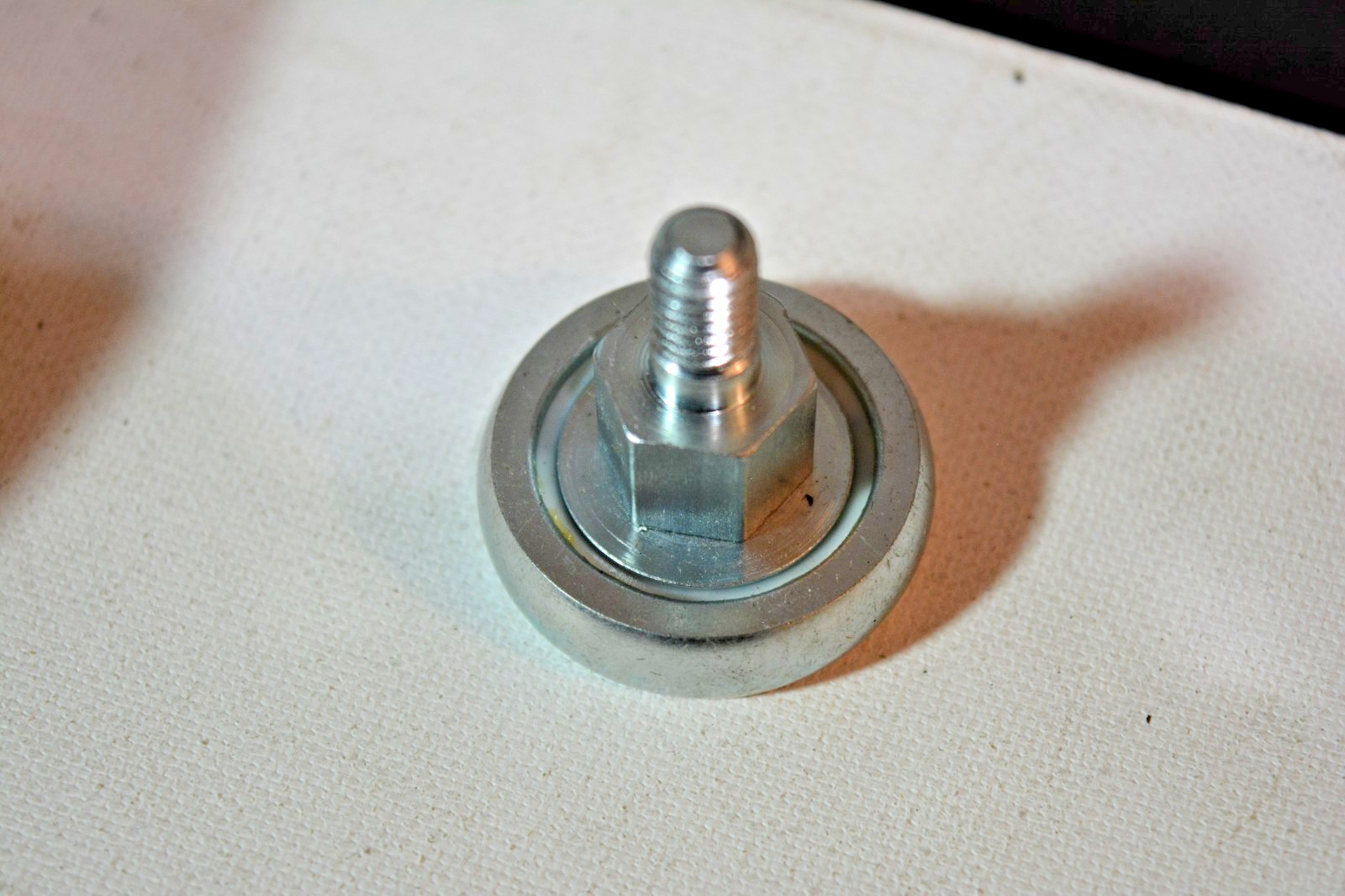

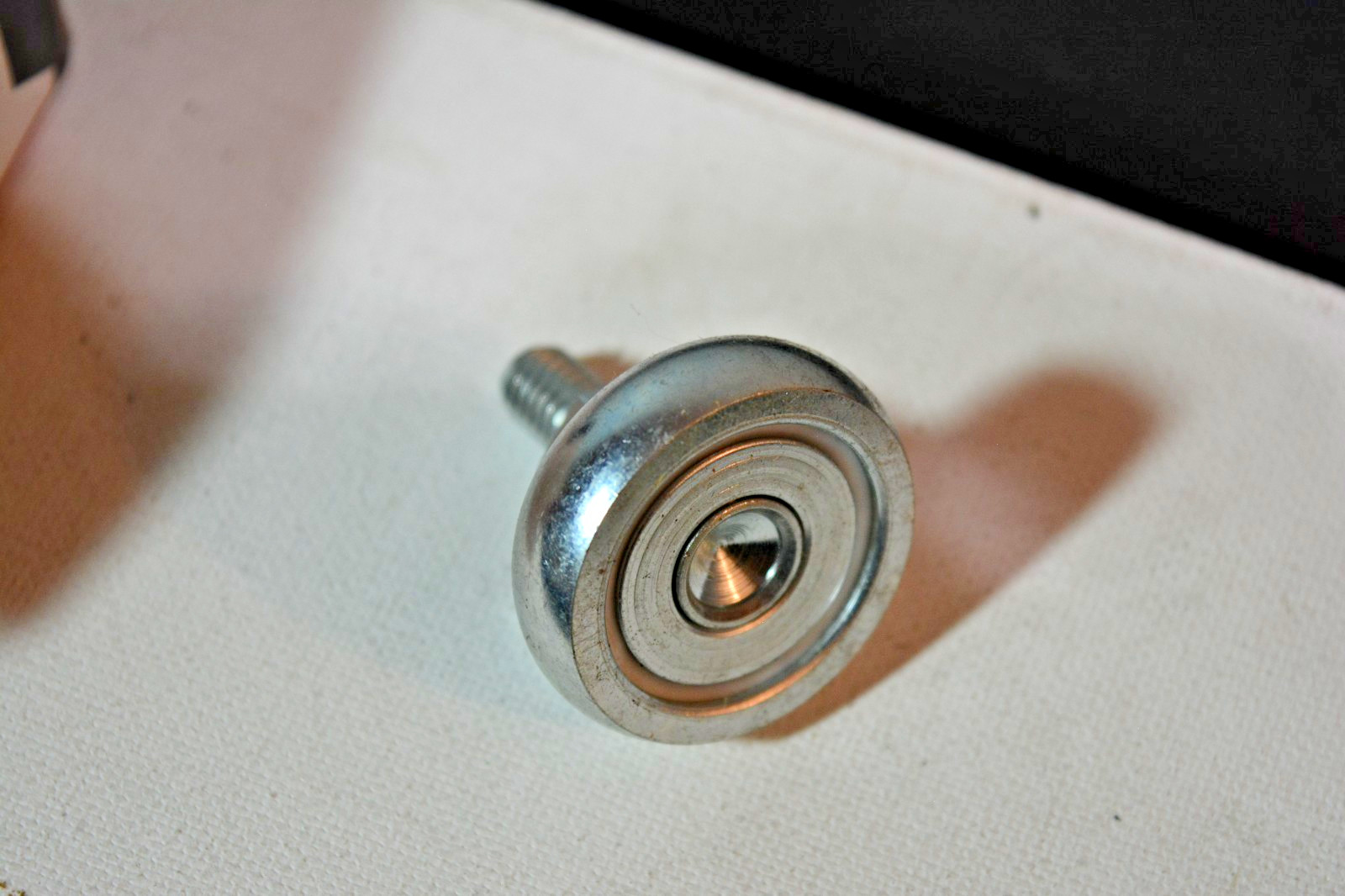

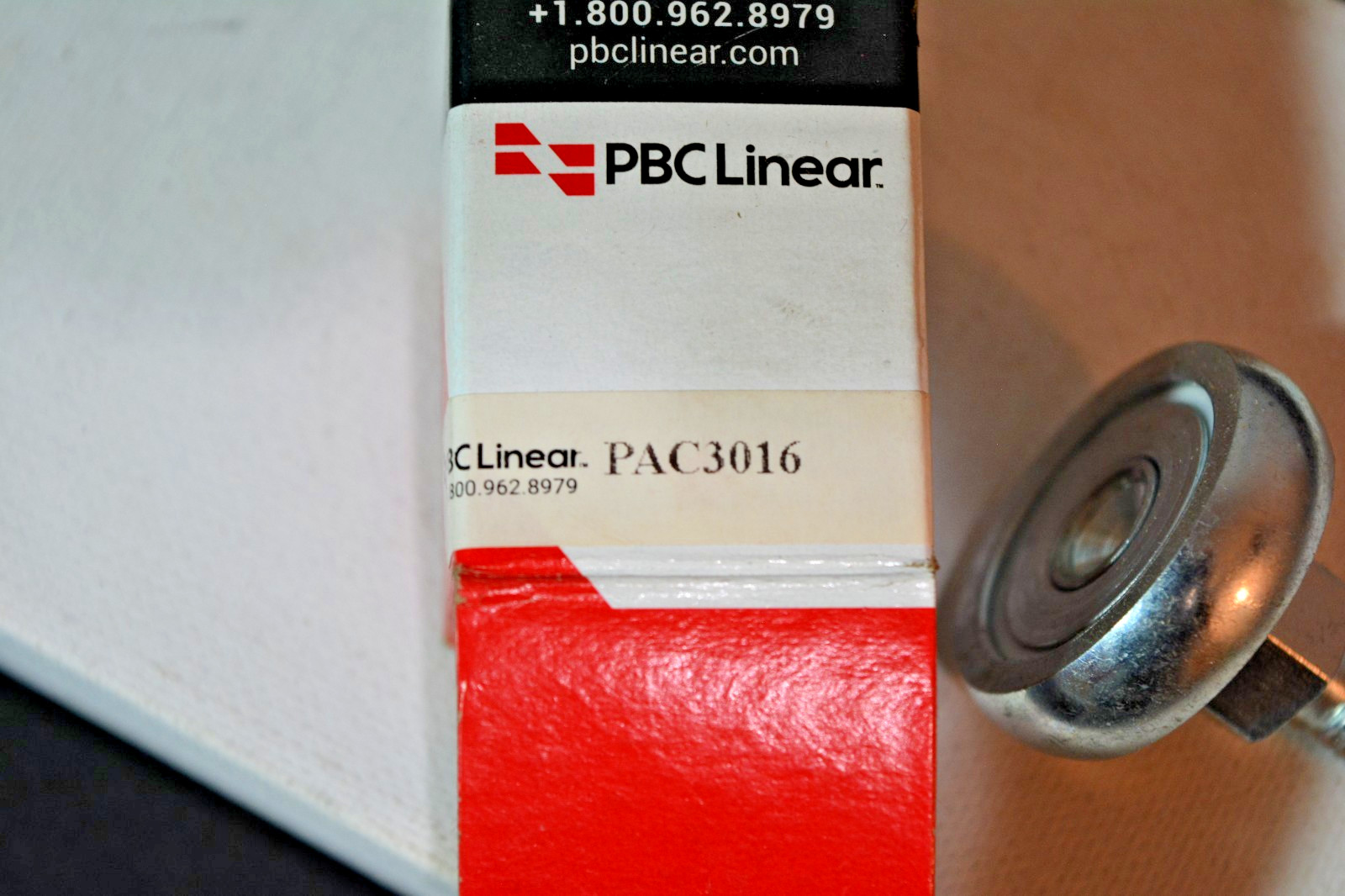

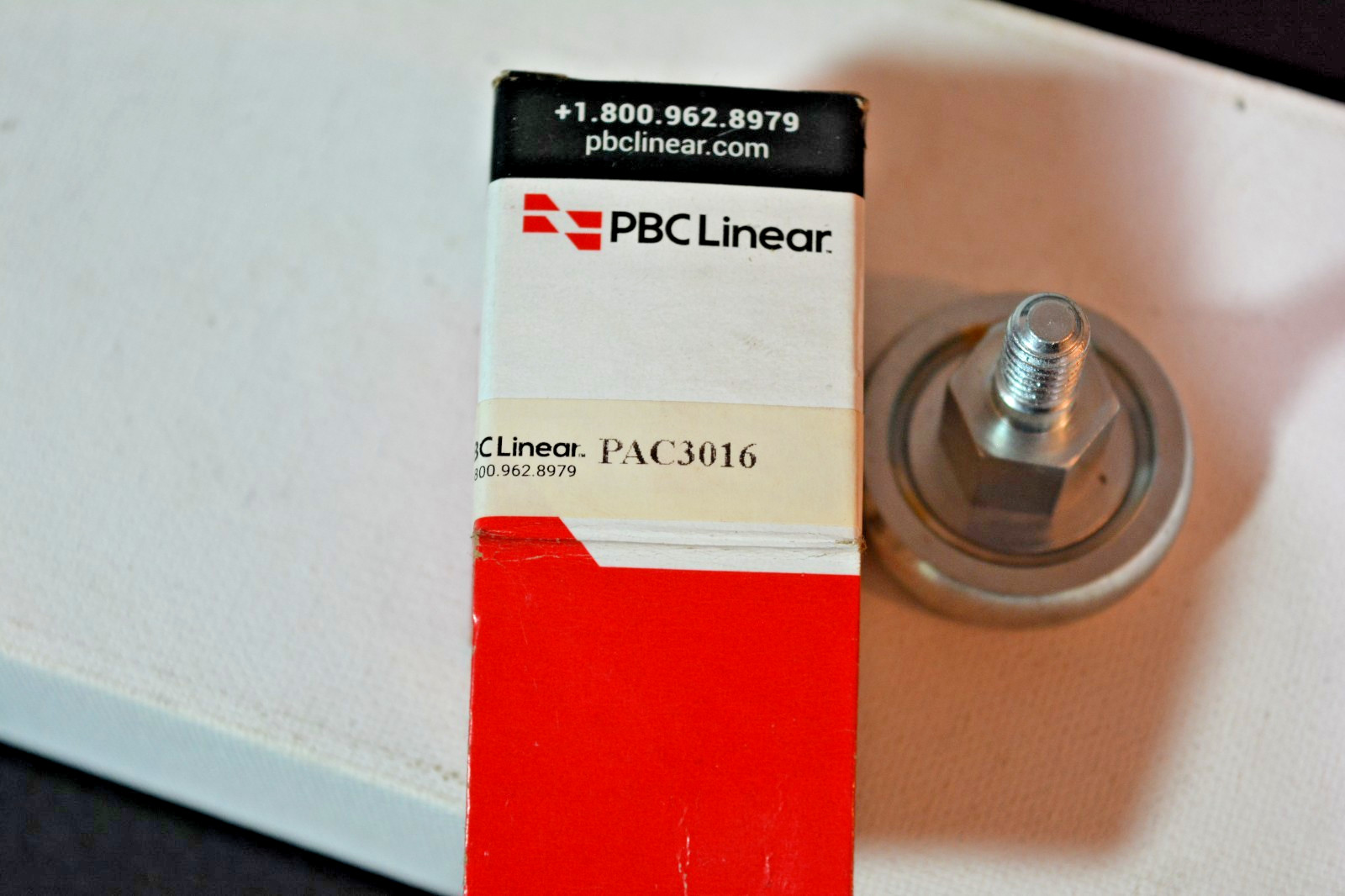

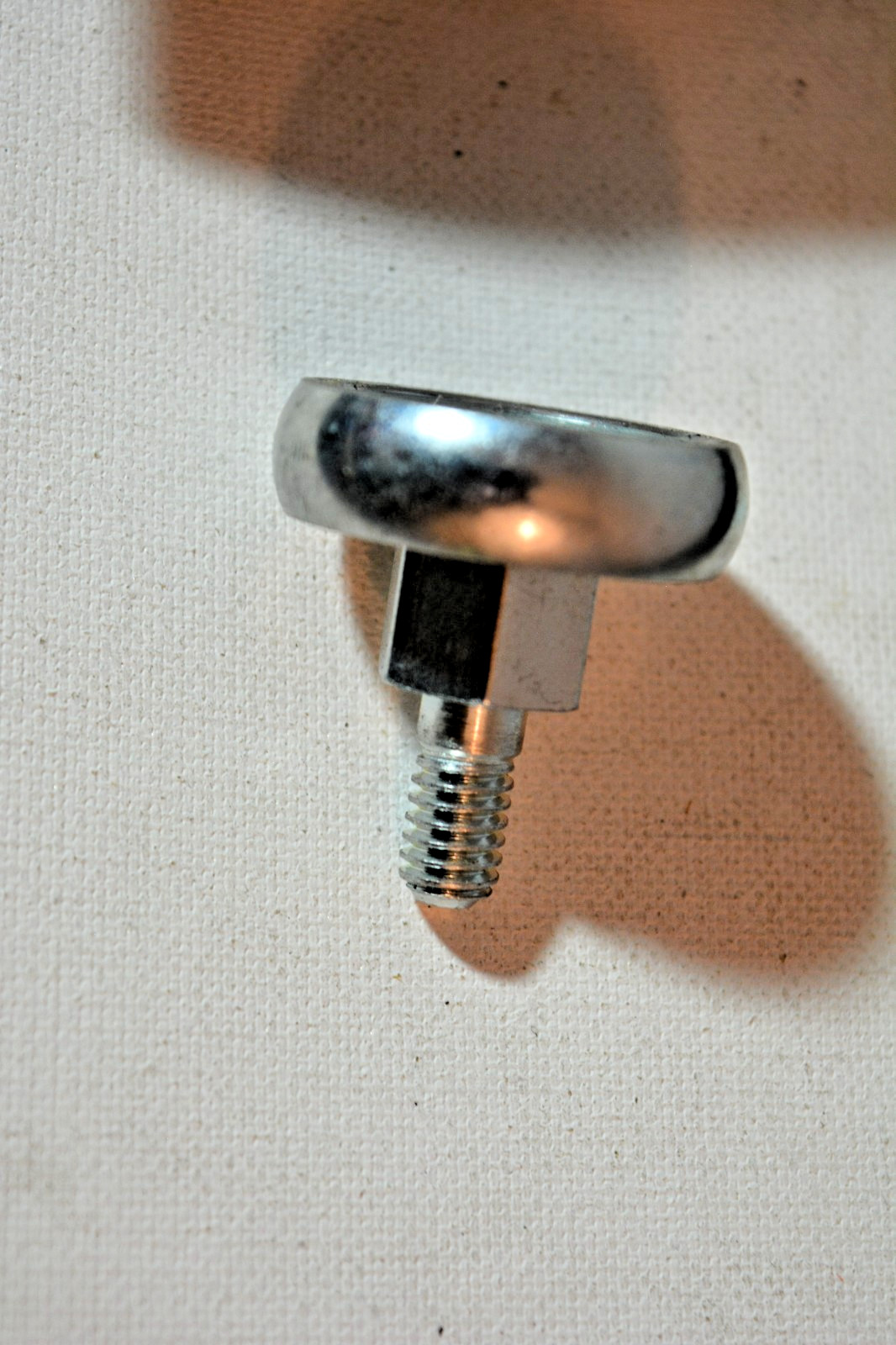

NEW PBC Linear PAC3016 Crown Roller Bearing, 1.380 Roller Dia
USD 38.78 USD
Specifications
| Roller Width (In.) | 0.3800 |
| Roller Material | Steel |
| MPN | PAC3016 |
| Depth | 1.300 |
| Roller Type | Crown |
| Item | Cam Follower |
| Thread Length (In.) | 0.450 |
| Roller Dia. (In.) | 1.3800 |
| Style | Cam Follower |
| Stud Length (In.) | 0.625 |
| Width | 1.300 |
| Stud Dia. (In.) | 0.3130 |
| Bearing Material | Zinc Plated Steel |
| Max. Load Axial (Lb.) | 250 |
| Bearing Type | Ball |
| Dynamic Load Capacity (Lb.) | 300 |
| Thread Size | 5/16-18 |
| Static Load Capacity (Lb.) | 399 |
| Weight | 0.0300 |
| Brand | PBC LINEAR |
| Type | Cam Follower |
| Length | 1.300 |
| Model | PAC3016 |
| Stud Material | Zinc Plated Steel |
| Country Of Origin | United States |
The 6203-ZZ option is straightforward, with no fancy extras, which many users appreciate.
