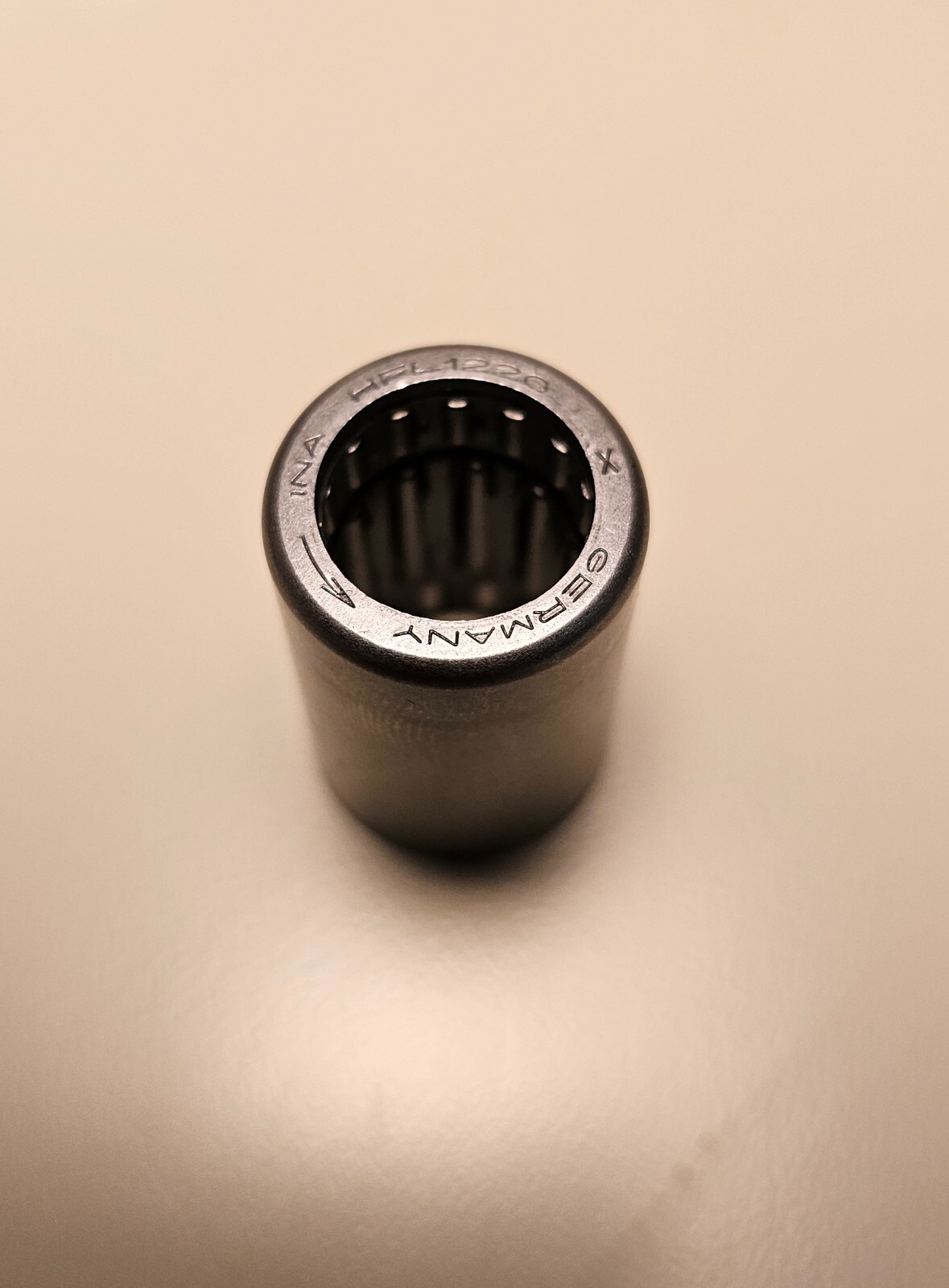

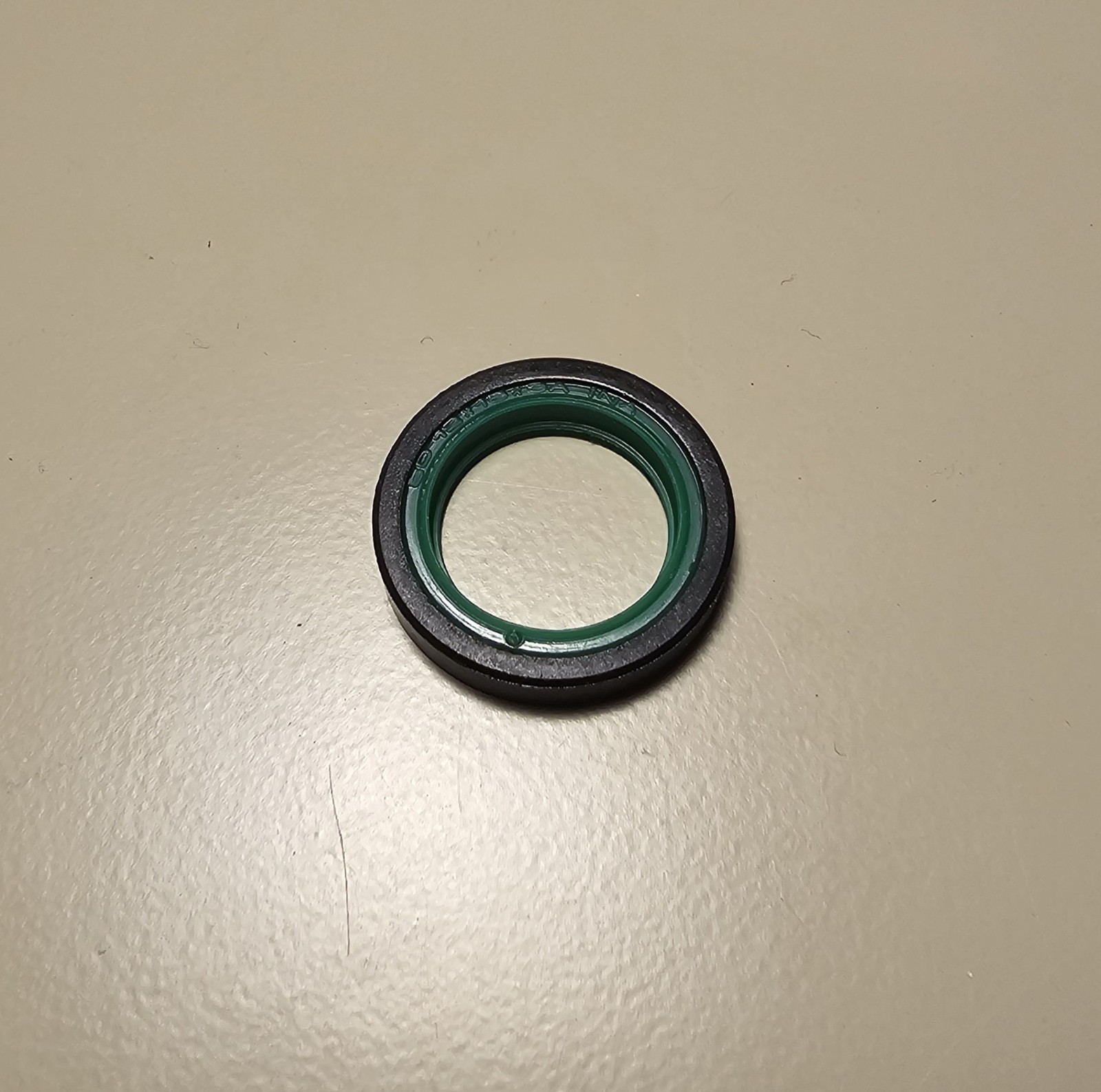

INA HFL1226 ONE-WAY CLUTCH NEEDLE BEARING WITH SEALING RING (12x18x3)
USD 5.99 USD

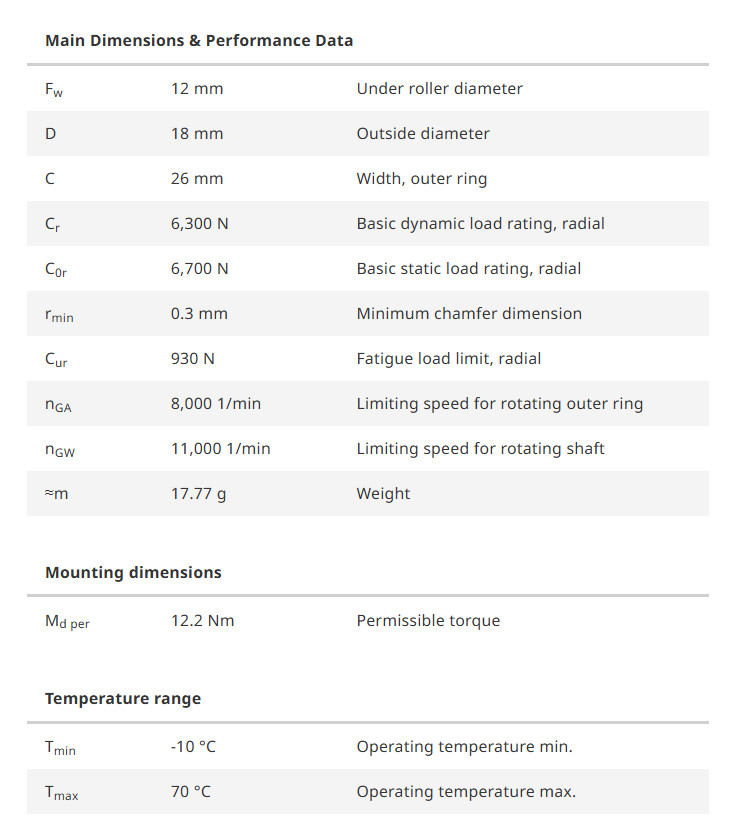

Specifications
| Minimum Operating Temperature | -10 C |
| Bearings Type | Needle Roller Bearing |
| Under Roller Diameter | 12 mm |
| MPN | INA HFL1226 |
| Permissible Mounting Torque | 12.2 Nm |
| Weight | 17.77 g |
| Limiting Speed For Rotating Outer Ring | 8,000 1/min |
| Brand | INA |
| Limiting Speed For Rotating Shaft | 11,000 1/min |
| Maximum Operating Temperature | 70 C |
| Minimum Chamfer Dimension | 0.3 mm |
| Unit Type | Unit |
| Basic Dynamic Load Rating, Radial | 6,300 N |
| Basic Static Load Rating, Radial | 6,700 N |
| Width, Outer Ring | 26 mm |
| Model | HFL1226 ONE WAY CLUTCH |
| Fatigue Load Limit, Radial | 930 N |
| Outside Diameter | 18 mm |
| Country Of Origin | Germany |
With this bearing, you will find that it carries the trusted INA name, which many mechanics recognize.
