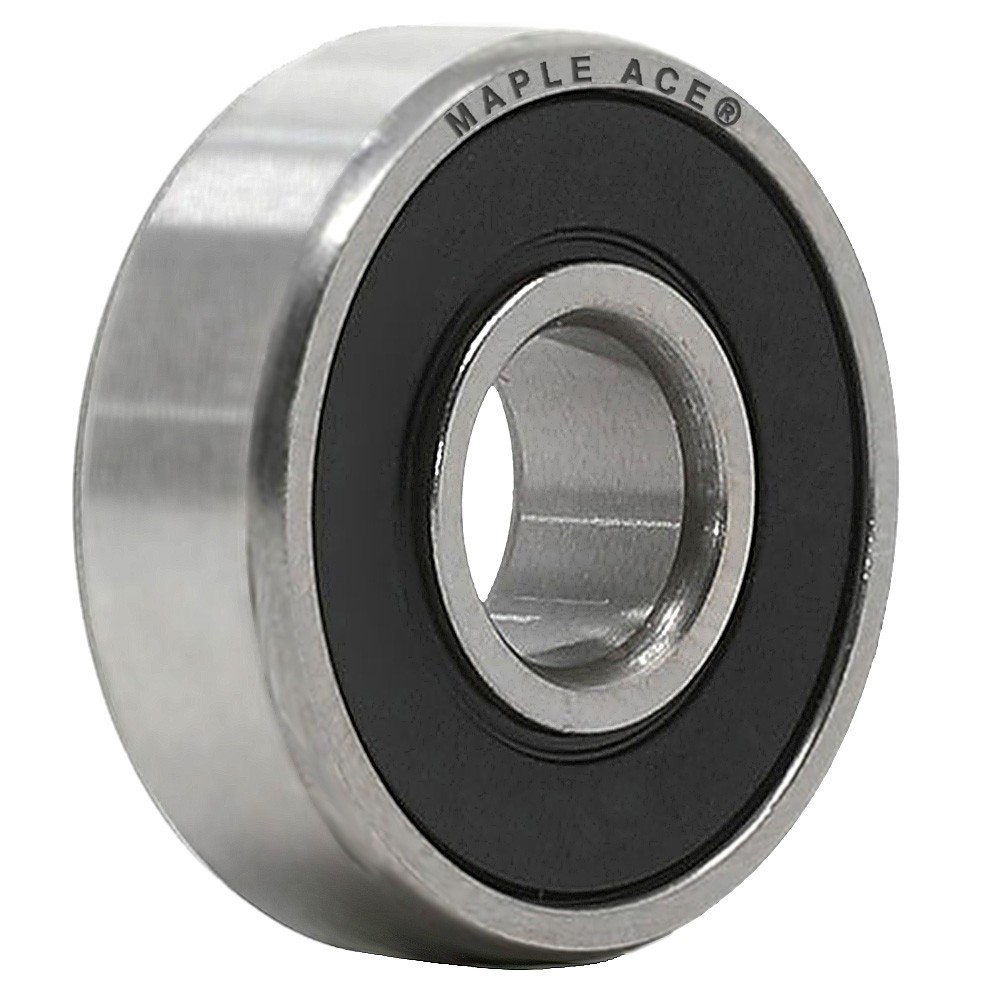

688-2RS Ball Bearing 8x16x5mm 688 2RS Rubber Sealed (PCs 4)

USD 8.95 USD

SKU: Yi3v5aiv

Brand: MAPLE ACE

MPN: 688-2RS

GTIN: 841339009551

Condition: New

Tags: 0 to -7 μm 0.57 1.33" 16.00 MILLIMETERS 26000 5.00 MILLIMETERS 688-2RS 8.00 Millimeters 841339009551 ABEC3, P6, Class 6 Ball Gcr15 Grease MAPLE ACE Miniature Ball Bearing Sealed Ball Bearing Z3V3

Categories: Bearings & Bushings

Specifications

Brand	MAPLE ACE
Bearings Type	Miniature Ball Bearing
Material	Gcr15
Width	5.00 MILLIMETERS
Bore Diameter	8.00 Millimeters
Outside Diameter	16.00 MILLIMETERS
MPN	688-2RS
Model	688-2RS
Lubrication	Grease
Dynamic Load Rating Cr	1.33
Limiting Speed	26000
Rolling Element Indicator	Ball
Static Load Rating Cor	0.57
Tolerance Classes	ABEC3, P6, Class 6
Tolerance Inner Ring	0 to -7 μm
Tolerance Outer Ring	0 to -7 μm
Noise And Vibration	Z3V3
UPC	841339009551

A nice touch with MAPLE ACE is the clear markings, which help you confirm the size at a glance.
